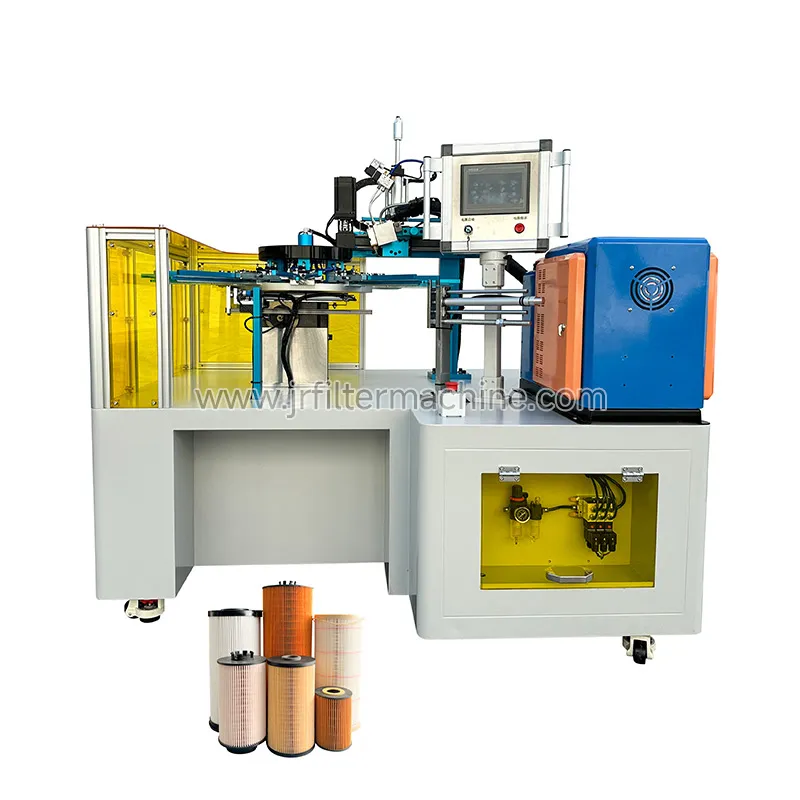

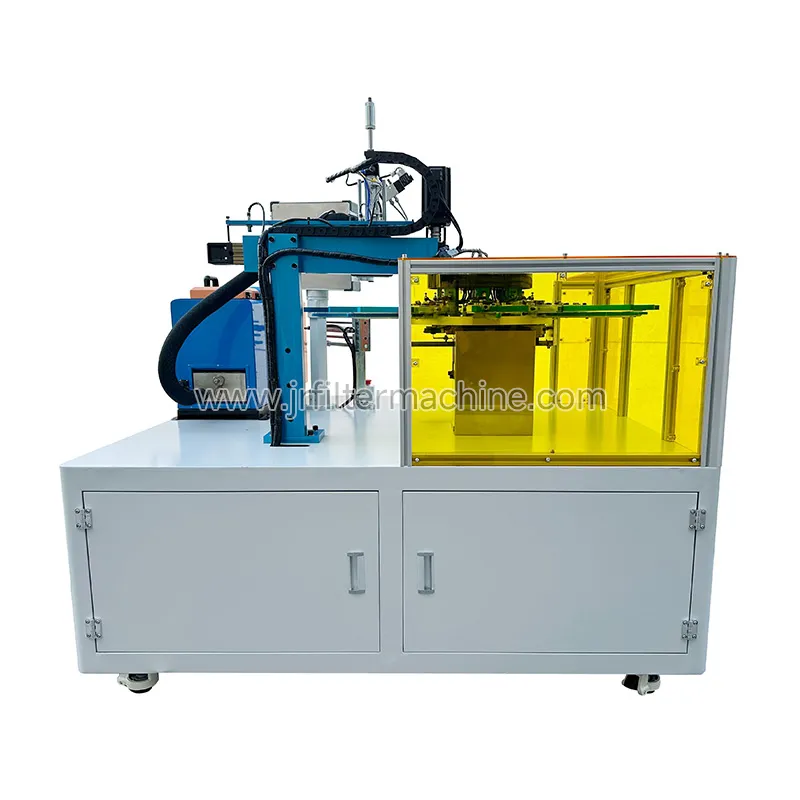

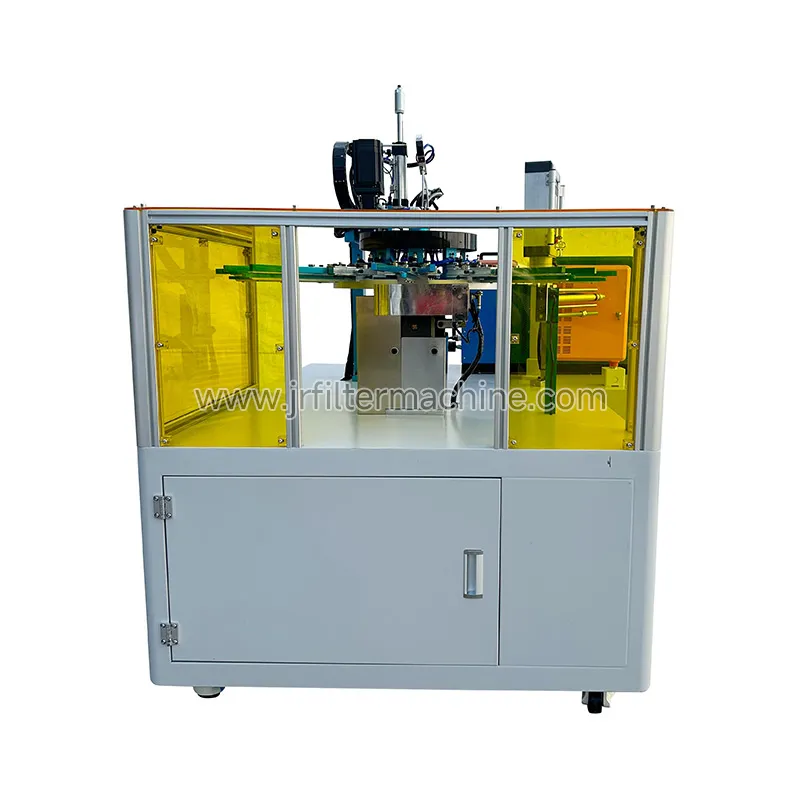

Automatic Rotary Type Hot Melt Adhesive Machine

Model：RZ-250-8

Production capacity: 15PCS/min

Filter height: ≦250mm

Hot melt machine capacity: 10KGS

Heating power: 6KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight: 500KGS

Dimensions: 1400*1100*1600mm

Significantly improve production efficiency: The equipment adopts a fully automatic turntable design, which can realize multi-station synchronous continuous operation, effectively meeting the needs of large-scale and batch production of environmentally friendly filter materials, and significantly reducing the time cost per unit product.

Ensuring stable and uniform bonding quality: The equipment is equipped with a high-precision hot melt adhesive injection system and an intelligent control system, which precisely controls the amount of adhesive, the location of the adhesive, and the speed of the adhesive application. This ensures that the environmentally friendly filter materials produced have high bonding strength, good sealing, and neat edges, greatly improving the stability and consistency of product quality.

Possessing highly flexible production capabilities: The equipment is usually equipped with a flexible programmable control system and a quick-change fixture design, which can adapt to the bonding needs of environmentally friendly filter materials of different specifications and shapes.

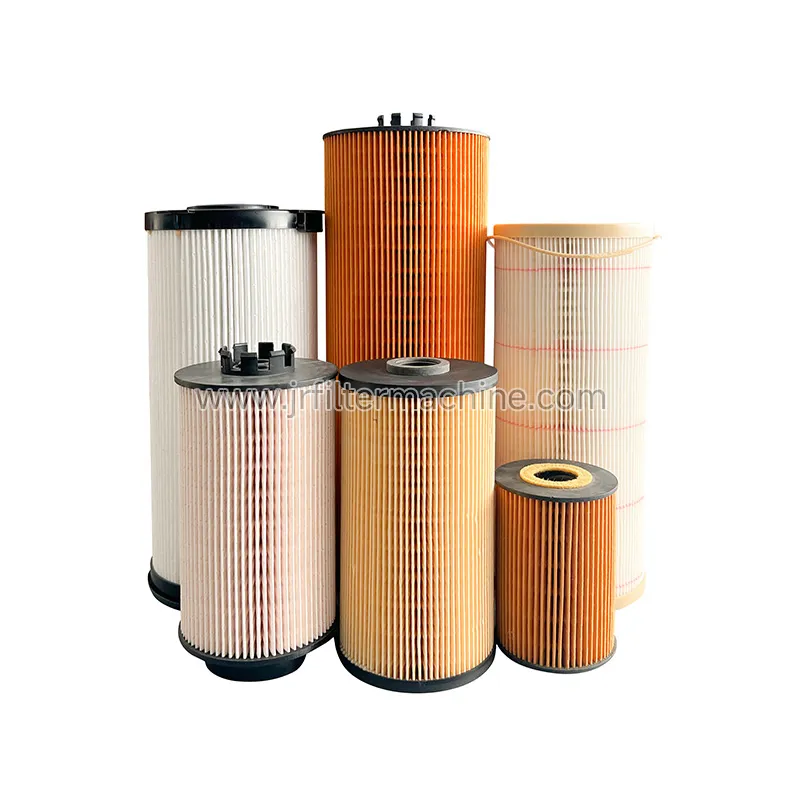

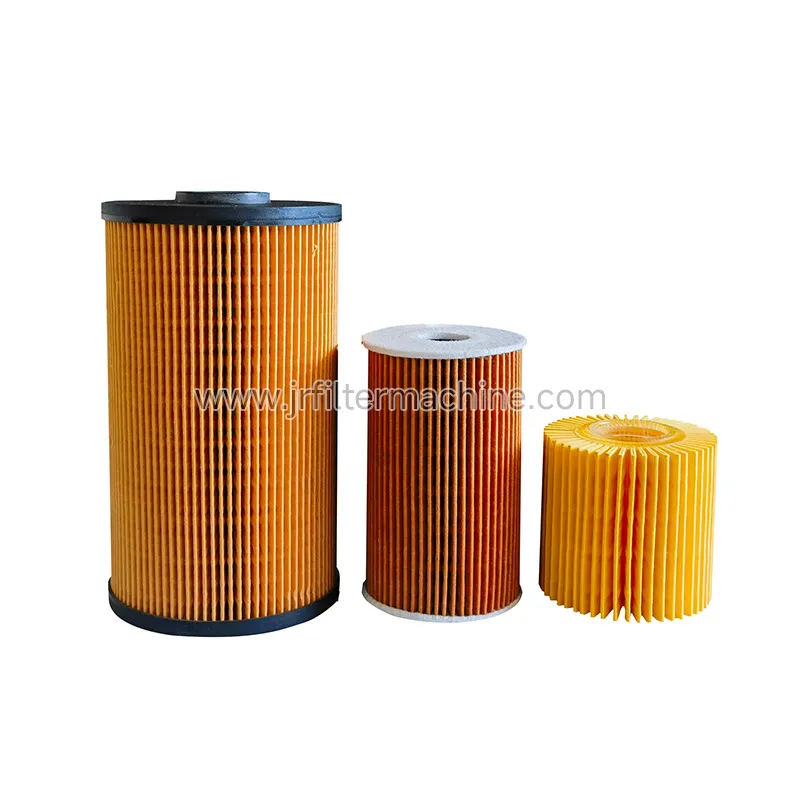

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
