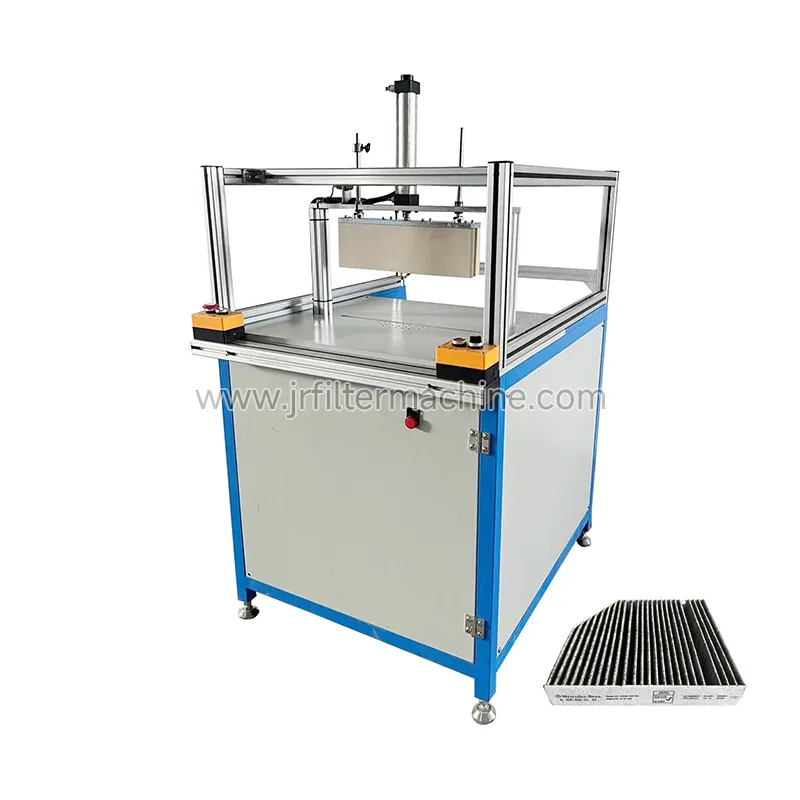

Shaped Cabin Air Filter Corner Cutting Machine

Model：QJJ-3

Maximum height of knife lifting platform: 100mm, knife disc diameter: 450mm

Maximum arc of knife lifting platform: 450mm

Processable materials: carbon cloth, non-woven fabric

Speed range: 0-2800 rpm

Speed regulation mode: frequency converter

Motor power: 2.2KW

Safety protection mode: dual button start, organic glass protection cover

Dimensions: 800*1000*1280mm

Machine weight: 120KG

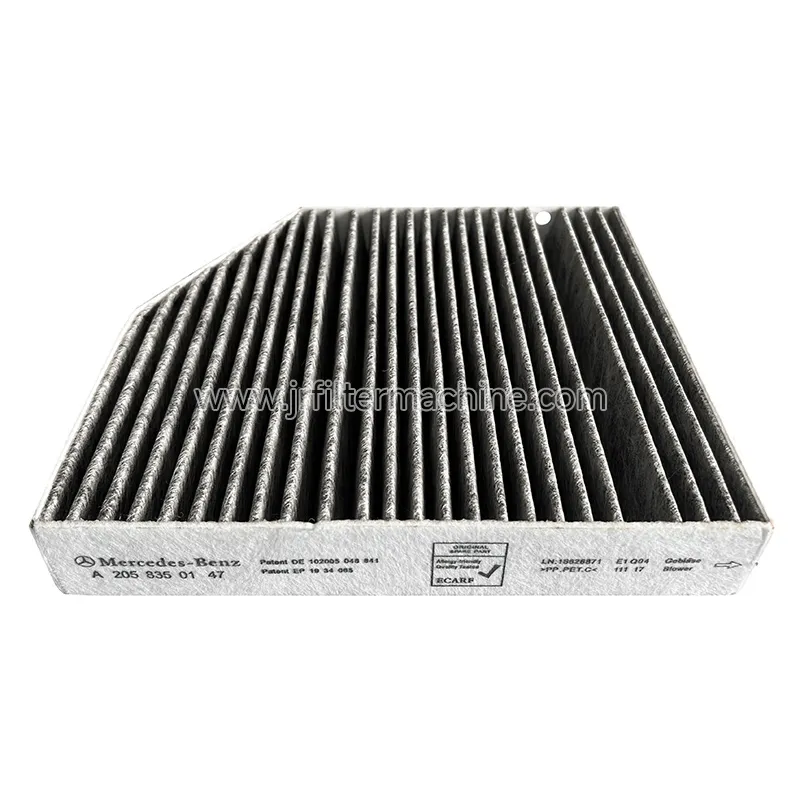

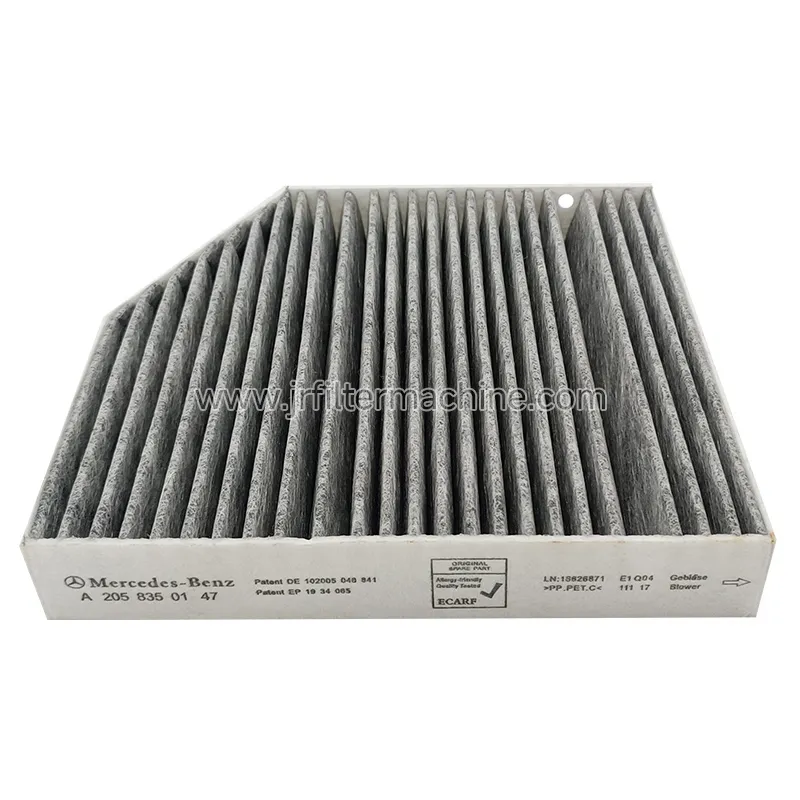

Improve processing accuracy and consistency: The use of high-precision mechanical structure and advanced control system can accurately locate and cut the special-shaped corners of the filter element, ensuring that the corner size and angle of each product meet the design standards, greatly improving the overall quality stability of the filter element products.

Good flexibility and adaptability: by replacing different molds or adjusting equipment parameters, it can quickly adapt to the corner cutting processing needs of different specifications and shapes of special-shaped air-conditioning filter elements.

Easy to integrate and intelligently manage: It can be seamlessly connected with other automated equipment in the air conditioning filter production line (such as feeders, testing equipment, packaging machines, etc.) to achieve automated integration of the entire production process.

Enhanced operational safety: Equipped with comprehensive safety protection devices, such as safety light curtains, emergency stop buttons, protective covers, etc., they can effectively isolate dangerous areas during equipment operation, prevent operators from contacting high-speed cutting parts, reduce the risk of work-related accidents, and provide reliable safety protection for operators.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
