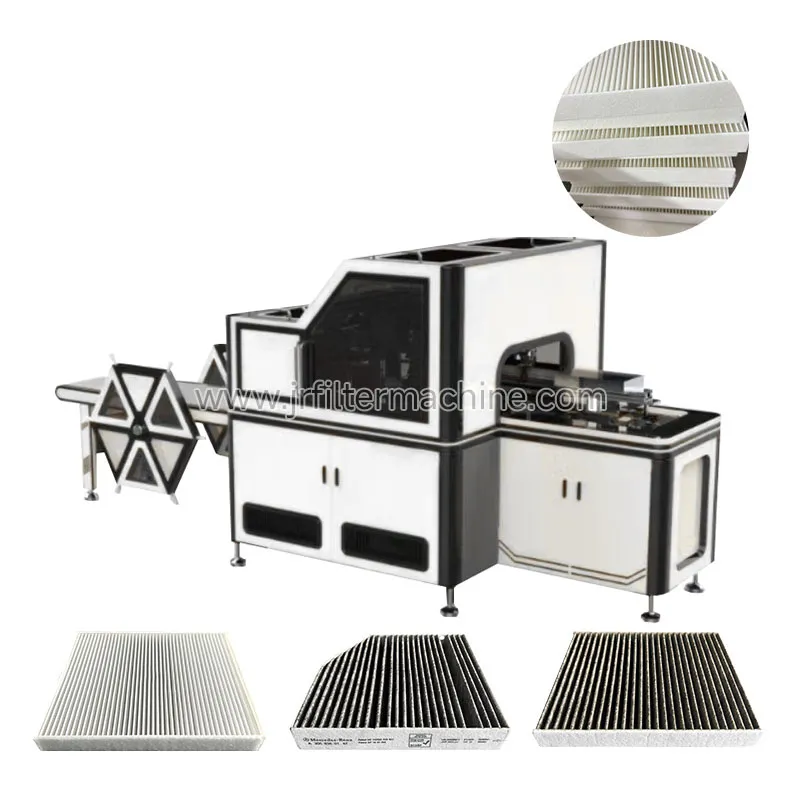

Full-Automatic Edge Bonding Machine

Model：TB-2（FULL-AUTOMATIC)

Edge strip unwinding diameter (mm) : 800mm

The size range of the filter element: length 80-450mm, width 80-450mm, height 8-60mm

Edge strip size and hardness: Width: 10-70mm, thickness: 0.5-5mm; Hardness: Soft or hard

Glue application width: 5-60mm

Production capacity (pcs/h) : Greater than 200PCS/h

Capacity of the glue injection machine (L) : 20L

Edge height accuracy and trimming accuracy (mm) : ±0.5mm

Dimensions: 1920mm*1350mm*1410mm

Voltage: 220V Power: 6kw

Air pressure: ≥0.6MPa

Ensure production continuity and stability: When an abnormal situation occurs at one station of the dual-station machine, it can temporarily switch to another station to continue production, buying time for the rapid processing of the faulty station, reducing the risk of full-line production stoppage due to single-machine failure, enhancing the anti-interference ability and overall stability of the production process, and ensuring the continuous production of air conditioning filters.

Optimize human resource allocation: By alternating the processes in parallel, operators have more time to complete the material replacement and monitoring work at the two workstations, reducing labor costs.

Improve product consistency and quality stability: With standardized operating procedures and unified equipment parameter settings, the two workstations can maintain highly consistent edge quality, effectively reducing product defect rates and improving product quality stability.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
