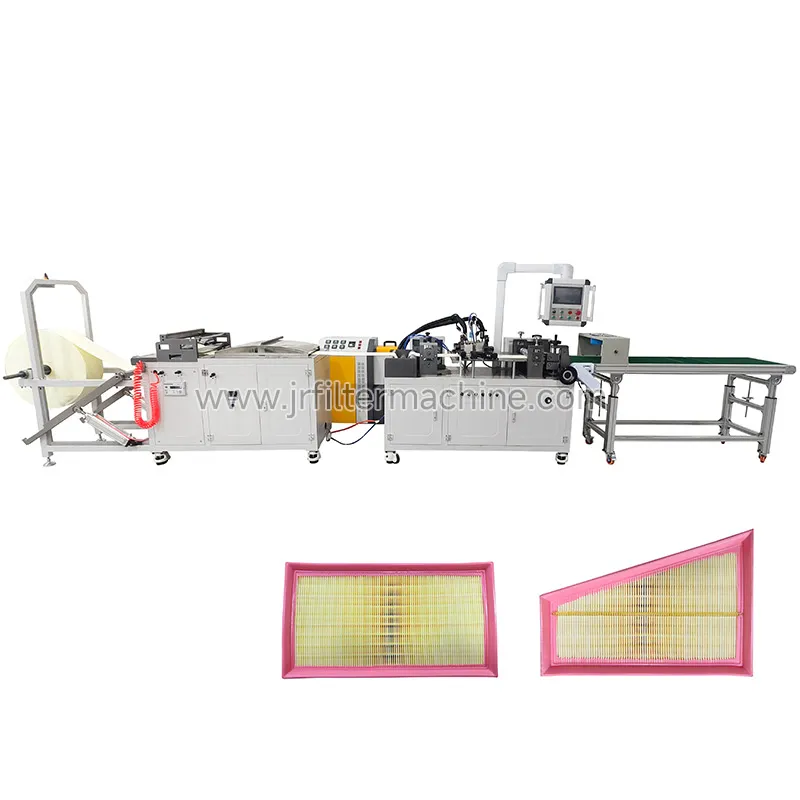

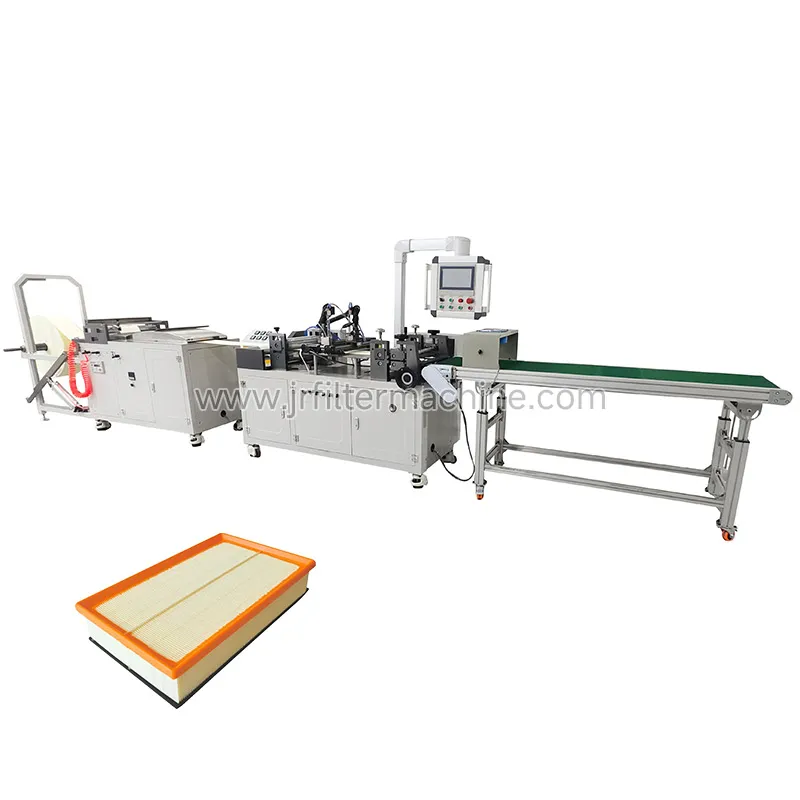

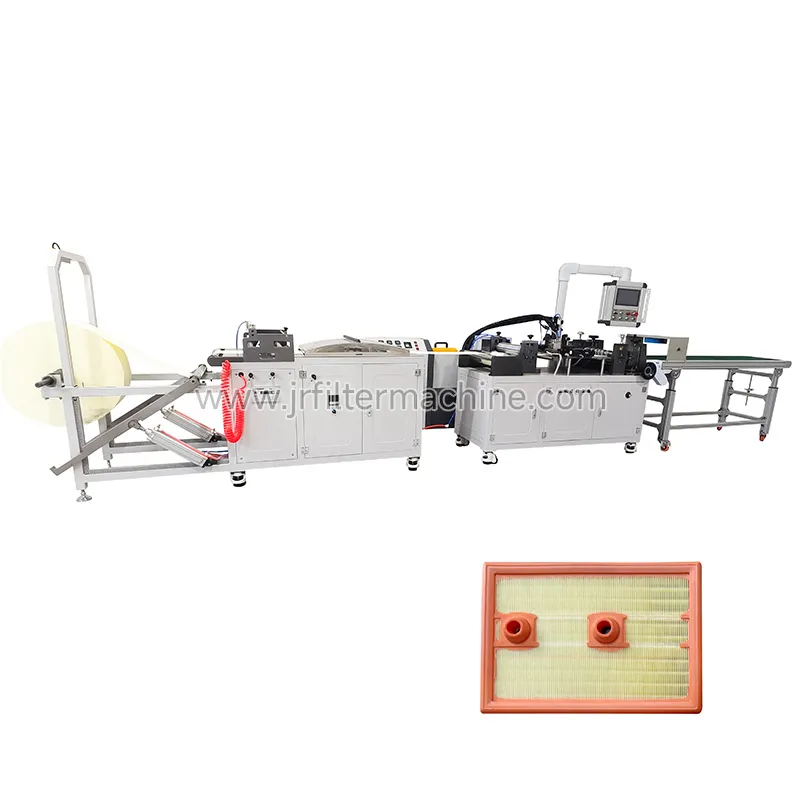

Car Air Filter Pleating Machine

Model：ZZJ-2

Production speed: 60m/min

Width of origami: 100-400mm

Folding height range: 22-60mm

Hot melt machine: 30L

Power: 15KW

Air pressure: 0.6MPa

Power supply: 380V/50HZ

Servo motor：3set

Dimensions: 2300*1020*2020mm 2300*1510*1770mm

 1030*630*1290mm

Equipment weight: 1626kg

Can make glue for shaped filter paper

Corner cutting requires a corner cutting machine

High-precision origami: It can realize high-precision origami processing, and the errors of pleat pitch, pleat height and pleat shape are controlled within a very small range, ensuring that the produced car air filter has good filtering performance and consistency.

High production efficiency: The use of advanced drive system and control system can achieve fast and continuous paper folding processing and improve production efficiency. At the same time, the stable operation of the conveying mechanism also ensures the high efficiency of the entire production process.

Strong flexibility: The adjustment device of the paper folding machine can flexibly adjust the paper folding parameters, such as pleat distance, pleat height and pleat shape, according to the production requirements of air filters of different specifications of cars, and has strong versatility and adaptability.

Good stability: Through the perfect tension control system, guide device and tensioning device, the stability of the filter paper during transportation and folding is guaranteed, the occurrence of problems such as wrinkles and breaks is reduced, and the product quality and production stability are improved.

High degree of automation: Equipped with advanced control systems, it can realize automated production, reduce manual intervention, and reduce labor intensity and labor costs. At the same time, automated production can also improve production accuracy and consistency, ensuring the stability of product quality.

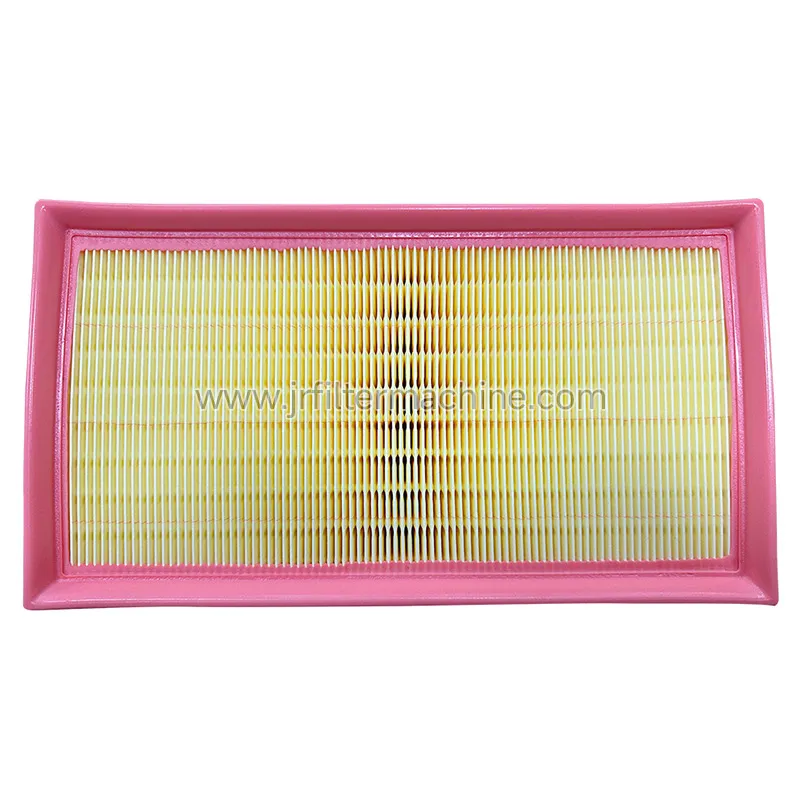

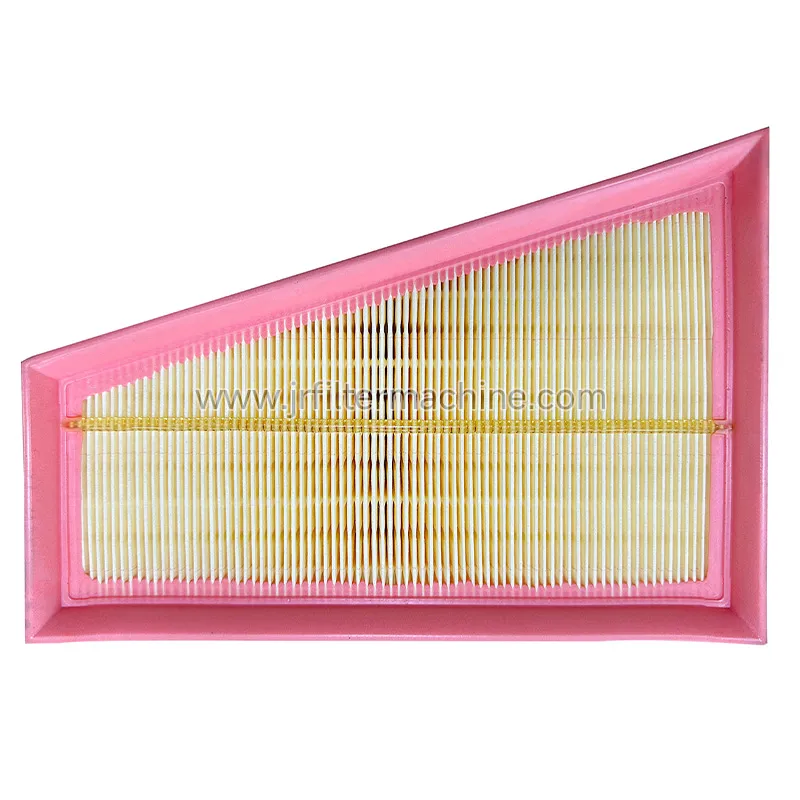

Used in the production of car air filter
