Finished Products
-

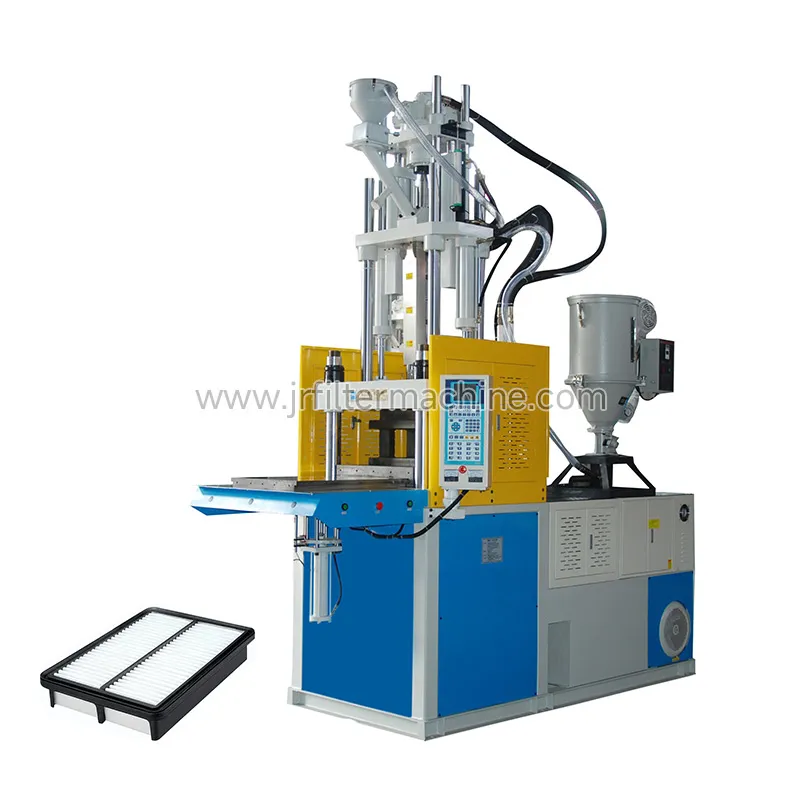

Product Parameters
Model：ZCJ-01
Screw Diameter: Φ50 Φ55 Φ60mm
Open Daylight: 560(660) ton
Maximum Injection Pressure: 1918 1554 1284kg/c ㎡
Ejector Force: 39.2(4)mm
Theoretical Shot Volume: 432 522 622c ㎡
Ejector Stroke: 110mm
Maximum Shot Weight（PS): 393 475 566g
Slidable Journey: 750mm
Injection Rate: 302 365 435 cm3/sec
Overall of Slipform(HxV): 750*630mm
Screw Speed: 0~185 r/min
Max Hydraulic Pressure: 13.7(140) kg/c ㎡
Screw Stroke: 220mm
Pump Output: 116 L/min
Nozzle Retraction Stroke: 315mm
Oil Tank Capacity: 425 L
Number of Temperature Control: 4
Electric Power: 18.5kw
Clamping Force: 1470(150) ton
Barrel Heating Power: 12.5kw
Space Between Tie-Bar: 650*620mm
Total Wattage: 31kw
Minimum Mold Thickness: 260(360)mm
Machine Dimension(Approx): 3.3*1.3*3.5m
Opening Stroke: 300mm
Machine Weight(Approx): 7.5t
-
Product Features
High precision: It can accurately control the process parameters such as injection pressure, speed, temperature and time to ensure the dimensional accuracy and quality stability of the product. For example, when producing precision parts for car air filters, the injection molding machine can control the dimensional error within a very small range.
High efficiency: With a faster molding cycle, it can meet the needs of large-scale production. By optimizing the design of the injection system, mold clamping system and cooling system, the injection molding machine can complete a molding process in a short time and improve production efficiency.
Good stability: The advanced hydraulic system and electrical control system are adopted to ensure the stability and reliability of the injection molding machine during long-term operation. The key components of the equipment have undergone strict quality inspection and optimized design, which can adapt to the harsh production environment and reduce the occurrence of failures.
Strong flexibility: The mold can be replaced according to different product requirements to produce a variety of different shapes and sizes of passenger car air filter parts. The process parameters of the injection molding machine can be flexibly adjusted through the operation panel to meet the molding requirements of different plastic materials.
-
Application
The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
-
