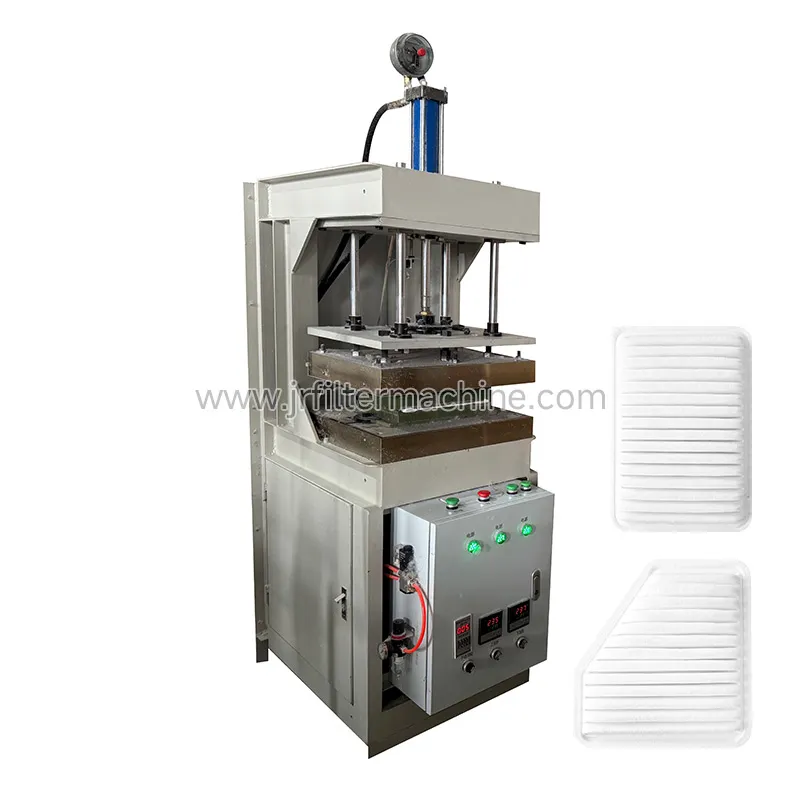

Filter Element Heat Jointing Machine

Model：JRZA-1

Product capacibility：70pcs /hour

Temp.control scope：normal temp.~300℃

Working air pressure：0.8MPa

Heating power：6kw

Power supply：380V/50Hz

M/C weight：700kg

M/C size：1000×1050×2500mm(L×W×H)

High heat sealing precision: The use of advanced temperature control system and pressure regulating device can accurately control the heat sealing temperature, time and pressure parameters to ensure that the filter element material reaches the best fusion state during the heat sealing process.

Outstanding production efficiency: The equipment integrates functional modules such as automatic feeding, positioning, heat sealing and material removal, realizing fully automated and continuous operation of the filter element heat sealing process.

Strong compatibility and adaptability: The design fully considers the heat-sealing requirements of filter elements of different models and specifications. By replacing the corresponding molds and adjusting the preset parameters, it is possible to quickly switch to produce different types of filter element products.

Excellent operational stability and reliability: Key components are manufactured using high-quality materials and precision machining processes, and undergo rigorous durability testing and quality inspection. Equipped with a comprehensive fault diagnosis system, it monitors equipment operating status in real time, providing timely warnings of potential problems, facilitating rapid troubleshooting and repairs, and ensuring smooth production line operation.
