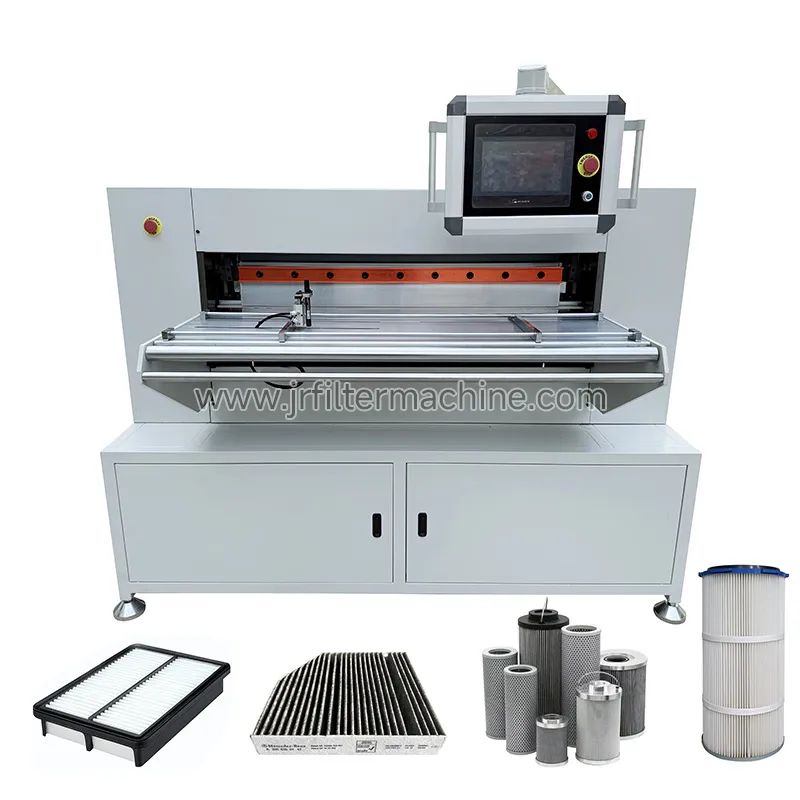

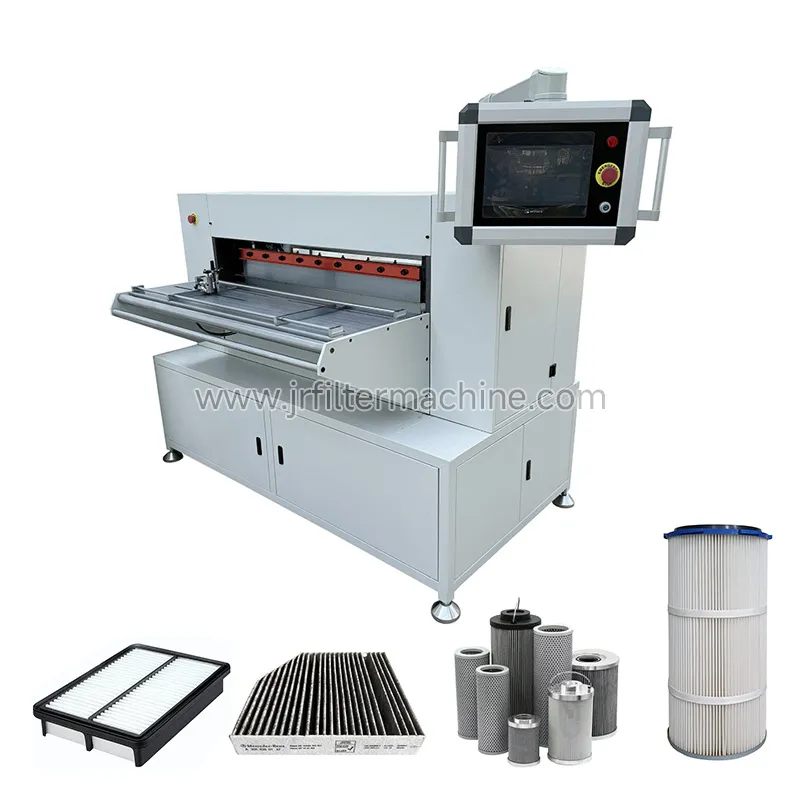

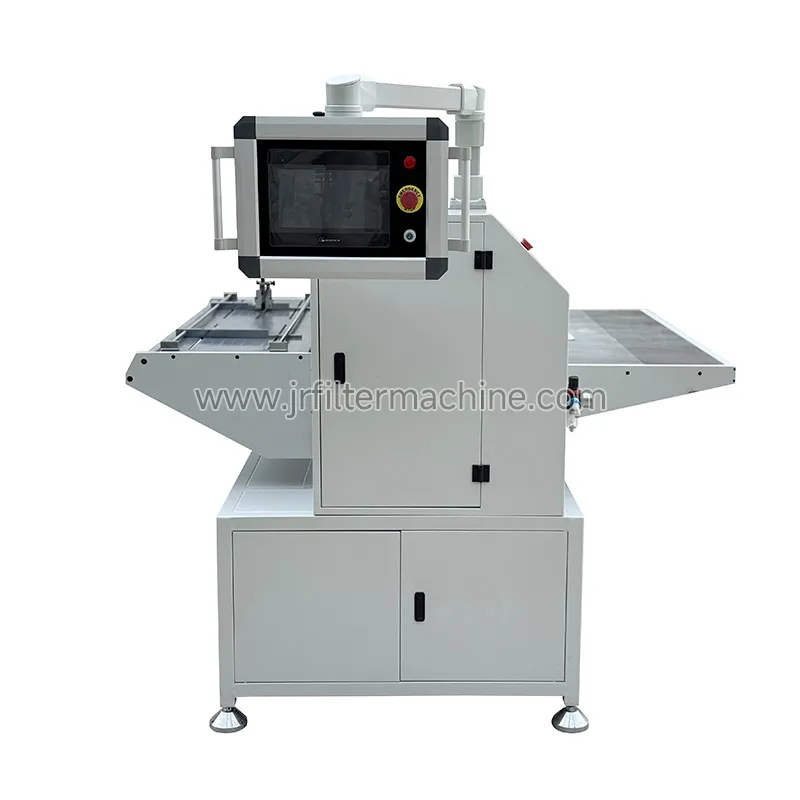

Cabin Air Filter Folding Machine

Model：CZ55-600-5

Maximum width: 650mm

Adjustable folding height range: 5-62mm

Folding speed: 0-150 folds/min adjustable

Power supply voltage: 380V/50HZ

Motor power: 5KW

Preheating power 4KW

Temperature control range: normal temperature -200 degrees

Working air pressure: 0.6MPa

Dimensions: 3300*1720*1455 (length, width and height)

Machine weight: 900kg

High folding precision and good consistency: The precise mechanical transmission and control system can accurately control the folding spacing, fold height and fold number of the filter paper, ensuring that the folding size error of each air conditioner filter is extremely small, thereby ensuring the stability of product quality.

Strong adaptability and flexible parameter adjustment: the folding speed, folding method and related size parameters can be quickly adjusted according to the requirements of air conditioner filter paper of different specifications and materials, without the need for large-scale mold replacement or complex mechanical adjustments.

Improve product performance: Precise folding enables the filter paper to form uniform and sufficient folds inside the air conditioner filter, increasing the effective filtration area of the filter paper, thereby improving the filtration efficiency and dust holding capacity of the air conditioner filter, extending its service life, and enhancing the product's market

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
