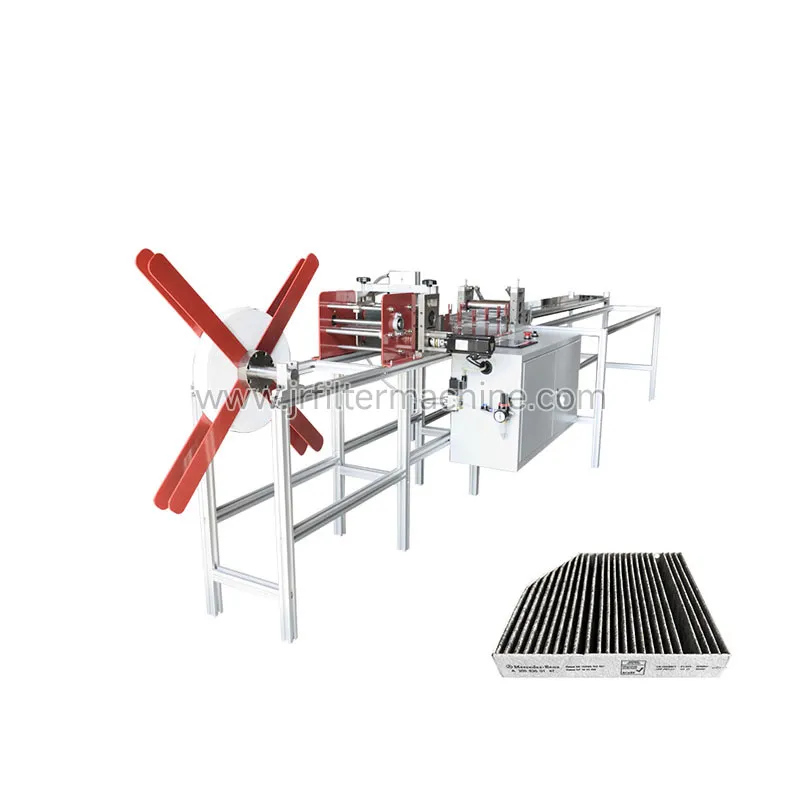

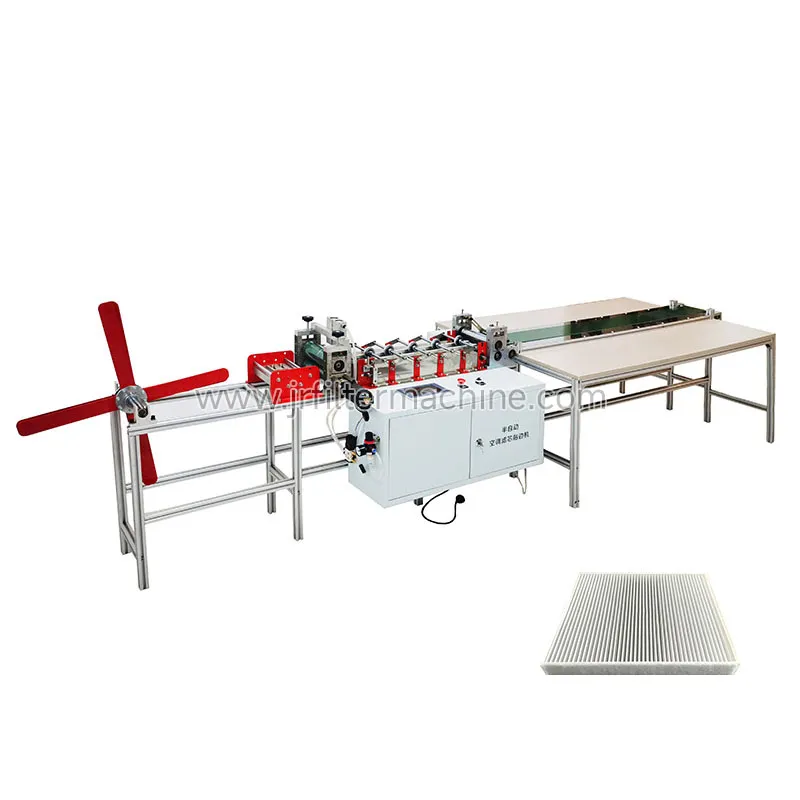

Semi-Automatic Edge Bonding Machine

Model：TB-1（SEMI-AUTOMATIC)

Edge strip unwinding diameter (mm) : 800mm

The size range of the filter element: length 80-450mm, width 80-450mm, height 8-60mm

Edge strip size and hardness: Width: 10-70mm, thickness: 0.5-5mm; Hardness: Soft or hard

Glue application width: 5-60mm

Production capacity (pcs/h) : 80-120pcs/h

The capacity of the glue injection machine (L) : 25L

Edge height accuracy and trimming accuracy (mm) : ±0.5mm

Dimensions: 1920mm*1350mm*1410mm

Voltage: 220V Power: 4kw

Air pressure: ≥0.6MPa

Effectively improve the accuracy and consistency of welt: The use of precise mechanical guiding and positioning devices, such as precision guide rails, pneumatic or servo-driven pressing components, and adjustable positioning fixtures, can control the welt error within a very small range.

It has good flexibility and adaptability: it has adjustable parameter settings, such as edge speed, pressing force, positioning size, etc., which can be quickly adjusted according to the requirements of air conditioning filter products of different specifications and materials.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
