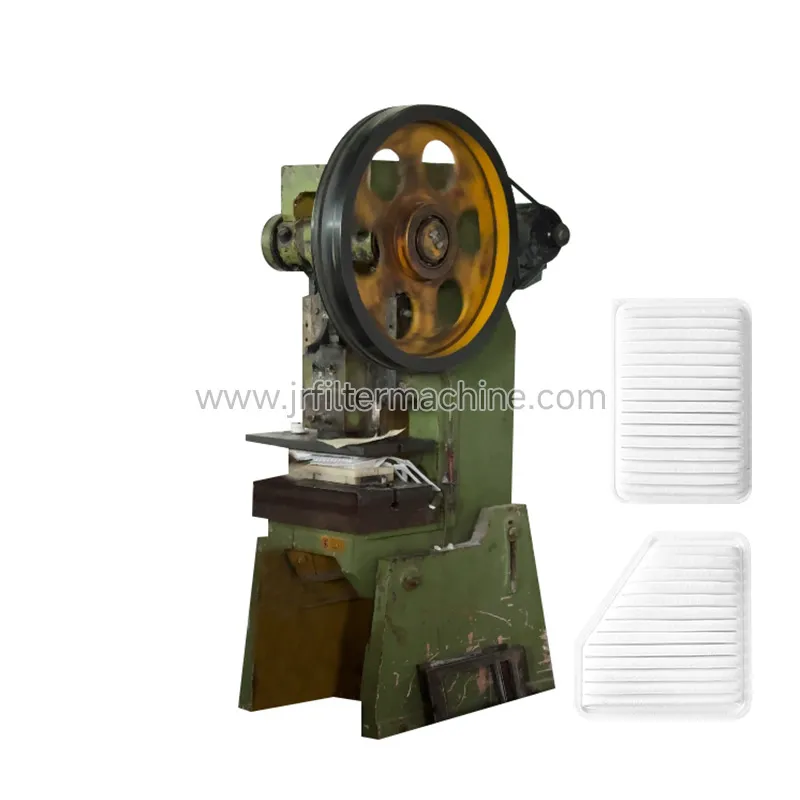

Thermal Cotton Machine

Model：JRCQ-1

Steroke speed：0.008m/s

Maximum cutting powre：120KN

Stamping control range：5-60mm

Height：40-140mm

Motor powre：2.25kw

Power supply: 380v/50hz

Hydraulic oil capacity：50L

Machine dimensions: 900×1000×1400mm(L×W×H)

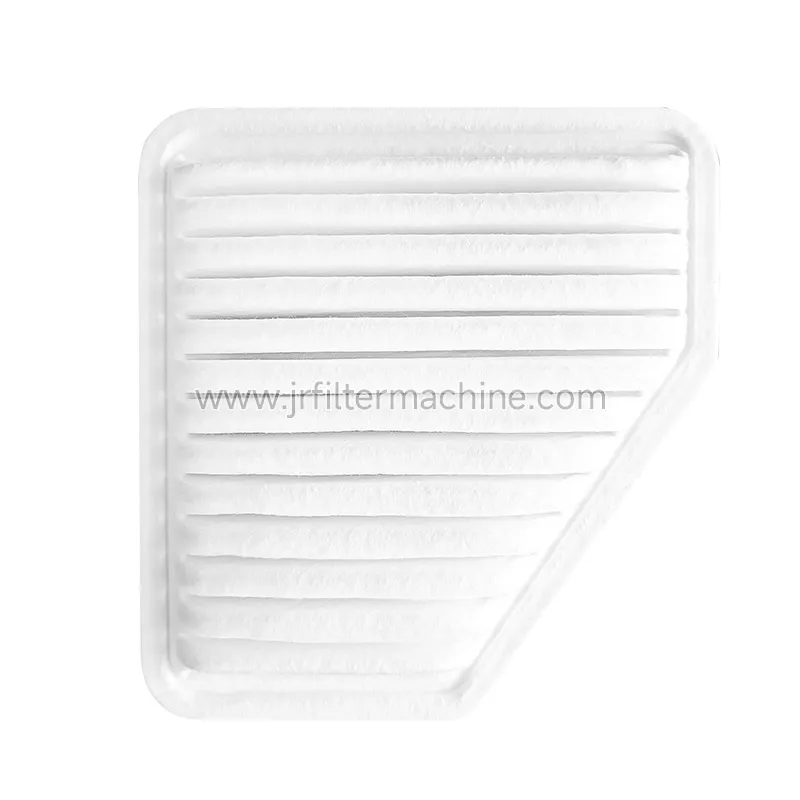

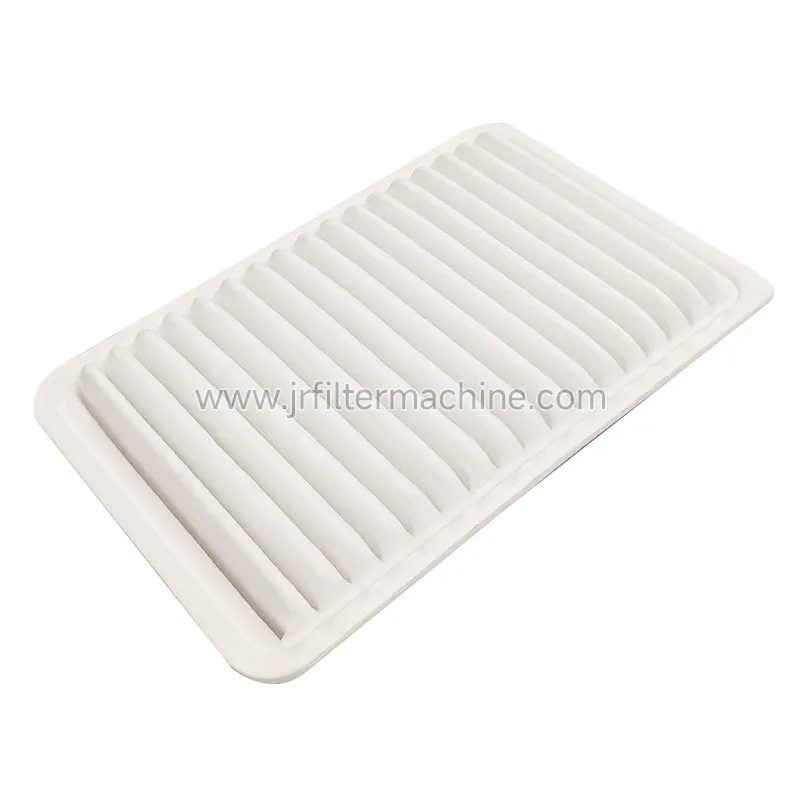

Integrated high-efficiency heat sealing and cutting: The integrated heat sealing and cutting functions can complete the heat sealing connection and precise cutting of filter element materials in the same process, reducing the time and process connection costs of multiple equipment conversion in traditional production, greatly improving the overall production efficiency, and adapting to the needs of large-scale continuous production.

Intelligent operation and control: Equipped with an advanced PLC control system and human-machine interface, it supports parameter preset, program storage and automatic operation. Operators can easily adjust key parameters such as cutting size, heat sealing temperature, pressure, etc., realize intelligent production management, reduce human operation errors, and have fault self-diagnosis and alarm functions to facilitate rapid problem detection.

Excellent material adaptability: For filter element materials of different materials (such as filter paper, non-woven fabrics, composite fibers, etc.) and thicknesses, the heat sealing temperature, pressure, cutting speed and other parameters can be flexibly adjusted to ensure stable and high-quality processing results under various working conditions, thereby enhancing the versatility and production flexibility of the equipment.

Comprehensive safety protection: Equipped with complete safety protection devices, such as safety light curtains, emergency stop buttons, protective covers, etc., which can effectively prevent operators from accidental contact during equipment operation, ensure personal safety during the production process, and comply with industrial safety standards and Toyota's safety management requirements.
