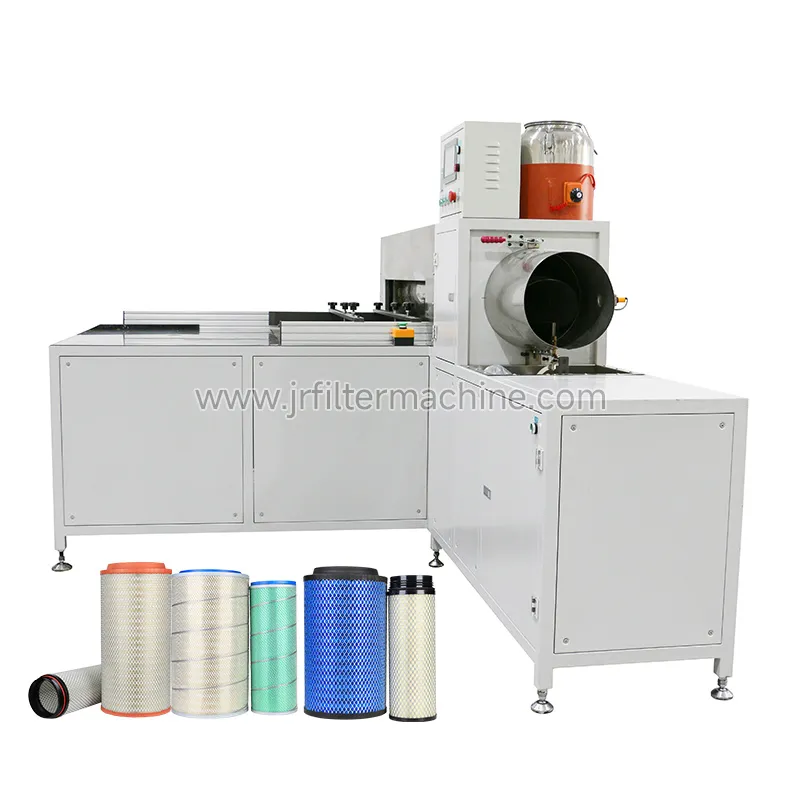

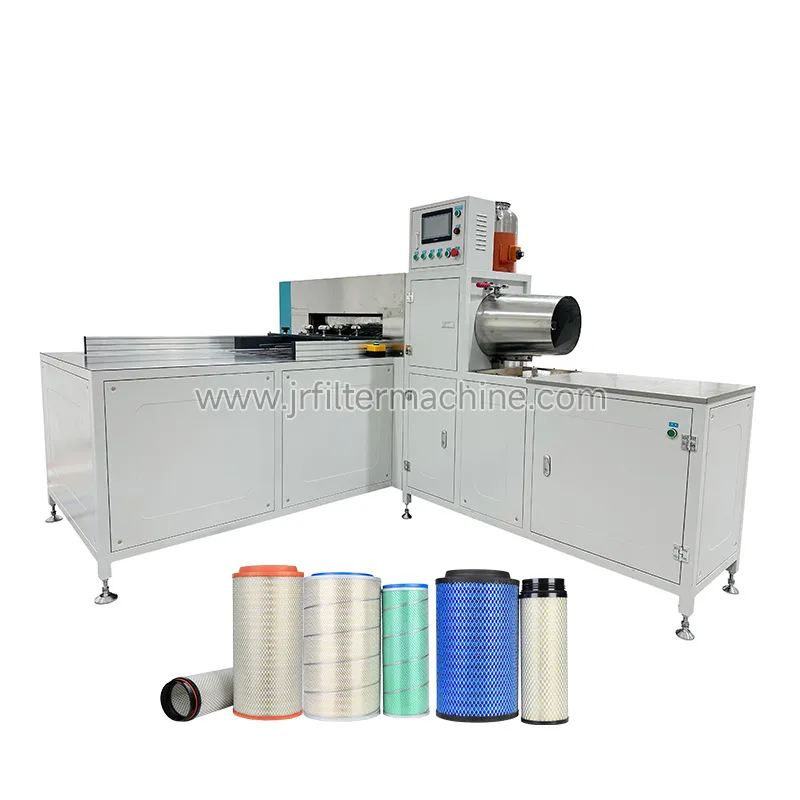

Automatic Air Filter Paper Filling Machine

Model：ZWJ-5-700

Working diameter: 230mm-350mm

Production efficiency: 2-3pcs/min

Paper fold height: 35-52mm

Paper width: 280-700mm

Total power: 5KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight：821KG

Dimensions: 1630*630*1920mm

 2130*1710*1520mm

Improve production efficiency: The automatic net loading machine can realize continuous and rapid net loading operation, and the number of nets loaded per hour is several times or even dozens of times higher than that of manual net loading.

Guarantee product quality: The automatic screen-installing machine has high screen-installing accuracy, which can ensure that the filter is installed accurately and fits tightly, avoiding problems such as filter deviation and wrinkles that may occur during manual screen installation, and improving the product quality and consistency of large air filters.

Reduce labor intensity: The traditional manual net-loading method requires workers to repeat operations such as loading, positioning, and laminating for a long time, which is labor-intensive and prone to fatigue and mistakes. The application of automatic net-loading machines can free workers from heavy physical labor and improve their working comfort.

Data monitoring and management: Modern automatic net loading machines are usually equipped with data monitoring systems, which can monitor various parameters in the net loading process in real time, such as net loading speed, pressure, temperature, etc., and record the data. By analyzing these data, problems in the net loading process can be discovered in time, adjustments and optimizations can be made, and the level of production management can be improved.

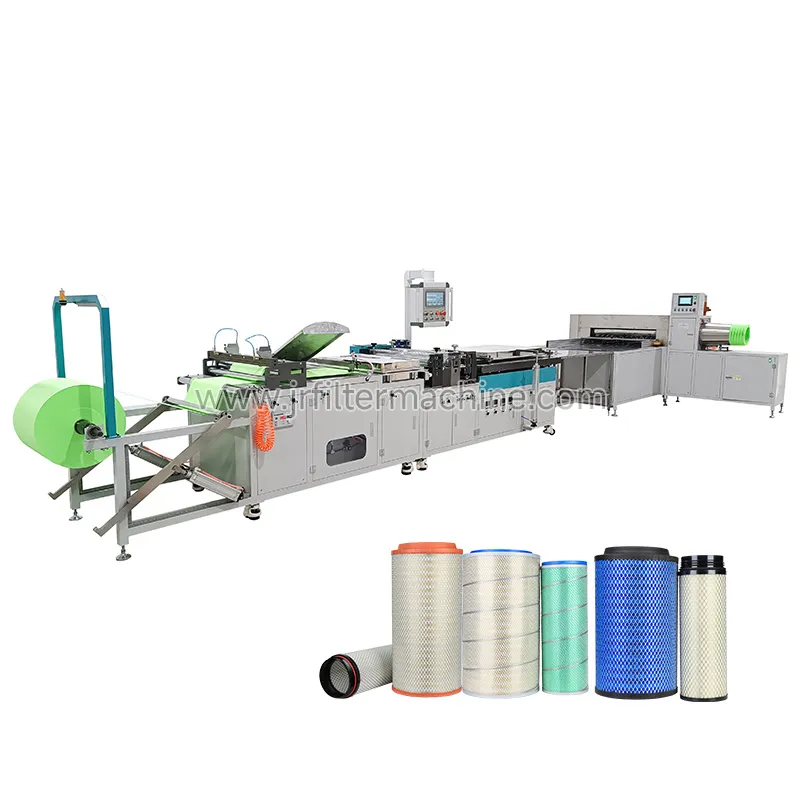

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
