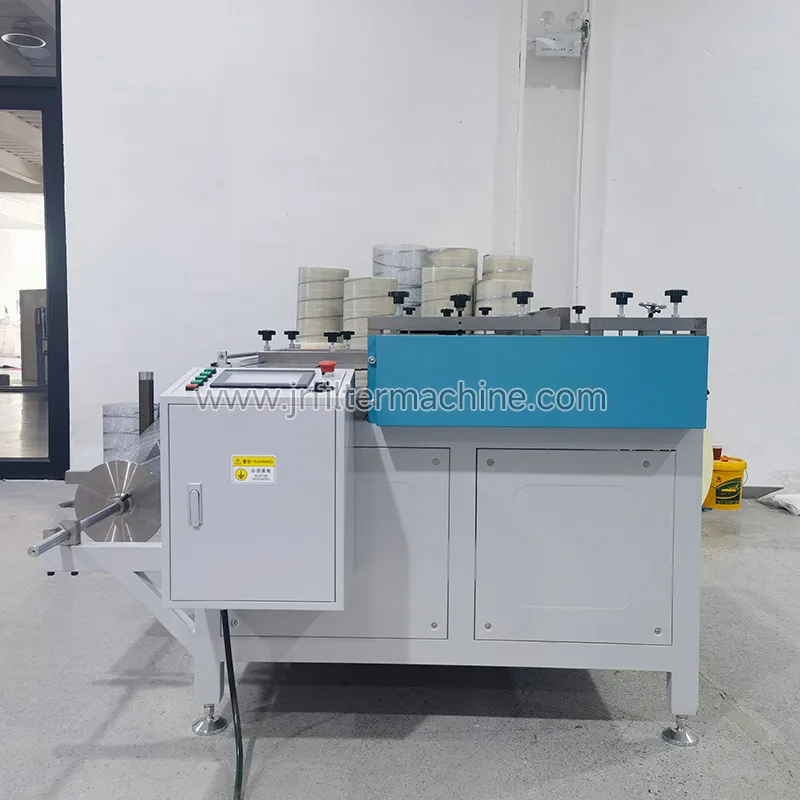

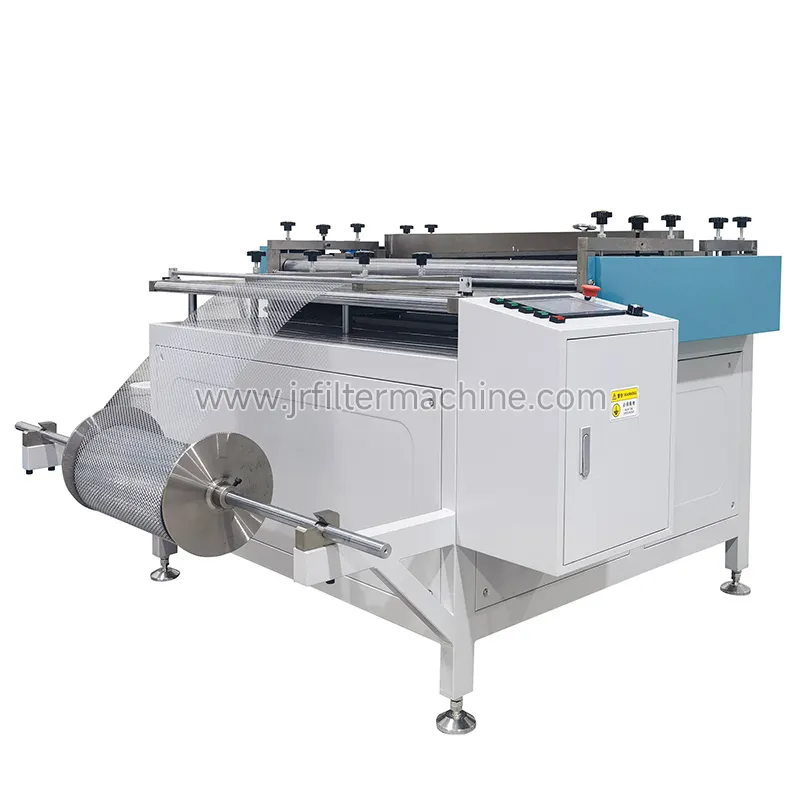

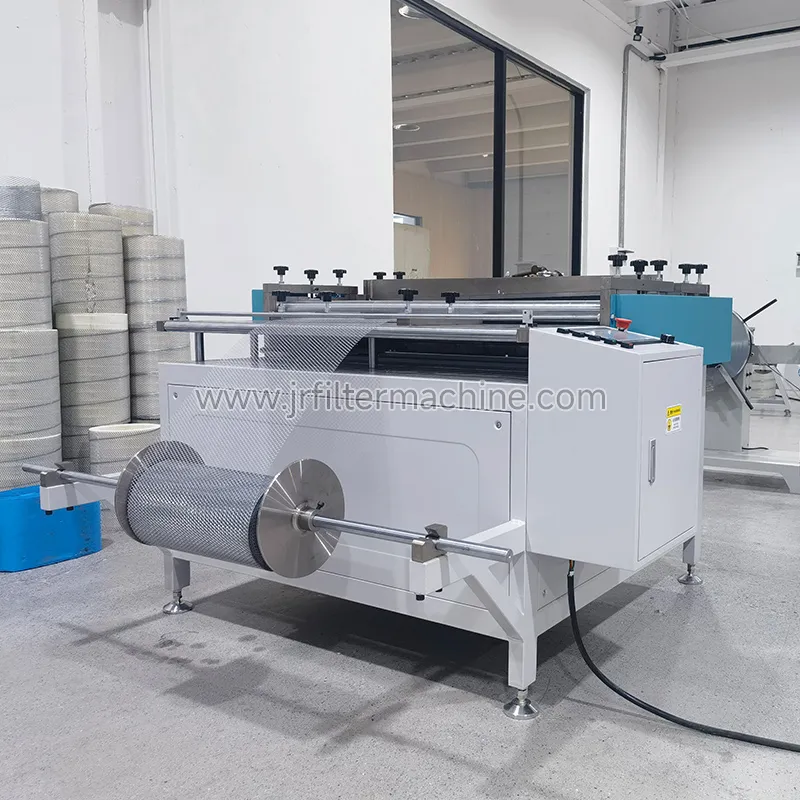

Automatic Cutting And Rolling Machine

Model：DW-4-1000

Design speed: 23m/min

Working width: 1000mm

Roll diameter range: 90-1000mm

Total power: 3KW

Air pressure: 0.6Mpa

Power supply: 380V/50Hz

Equipment weight: 914KGS

Dimensions: 1800*1680*1240mm

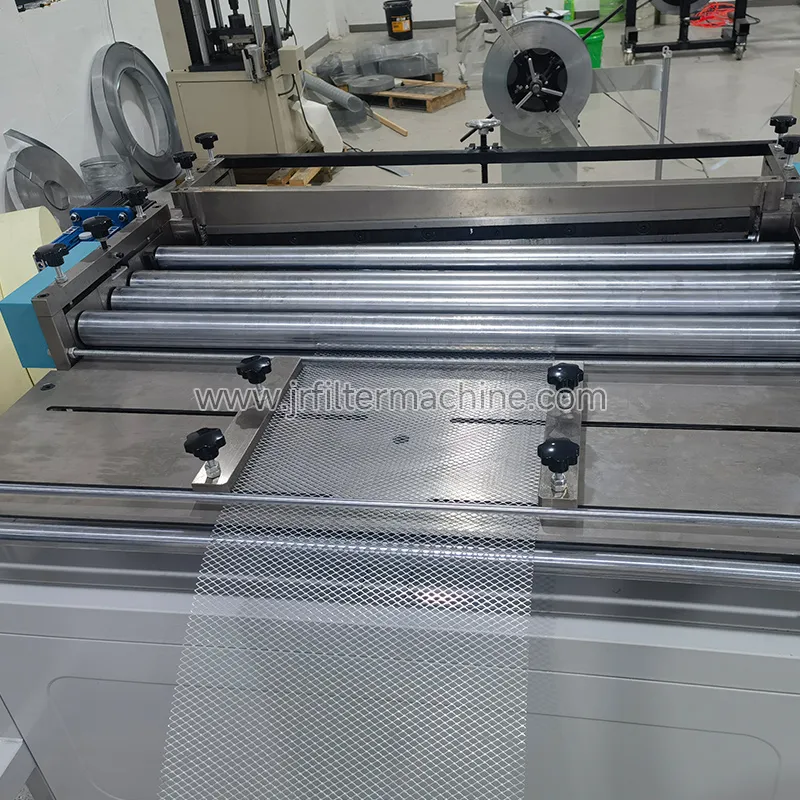

High degree of automation: The automatic cutting and rolling machine realizes the automation of the entire production process such as feeding, rolling, and cutting, which greatly reduces manual intervention and improves production efficiency and product quality stability. The operator only needs to set the relevant parameters on the operation panel, and the equipment can automatically complete the production task, reducing labor intensity and labor costs.

High precision: The use of advanced control systems and high-precision mechanical components can achieve precise control of the roll diameter and cut length. The roll diameter error can be controlled within a very small range, and the cut length accuracy can also reach a high level, ensuring the size consistency and quality stability of large air filter products.

Good stability: During the design and manufacturing process, the stability and reliability of the equipment are fully considered. High-quality components and advanced manufacturing processes are used, and strict quality inspection and debugging are carried out to ensure that the equipment will not fail during long-term continuous operation, reduce the number of equipment maintenance and downtime, and improve production efficiency.

High safety: The equipment is equipped with complete safety protection devices, such as protective covers, safety light curtains, emergency stop buttons, etc., which can effectively prevent operators from accidents during the operation of the equipment. At the same time, the control system also has overload protection, leakage protection and other functions to ensure the safe operation of the equipment.

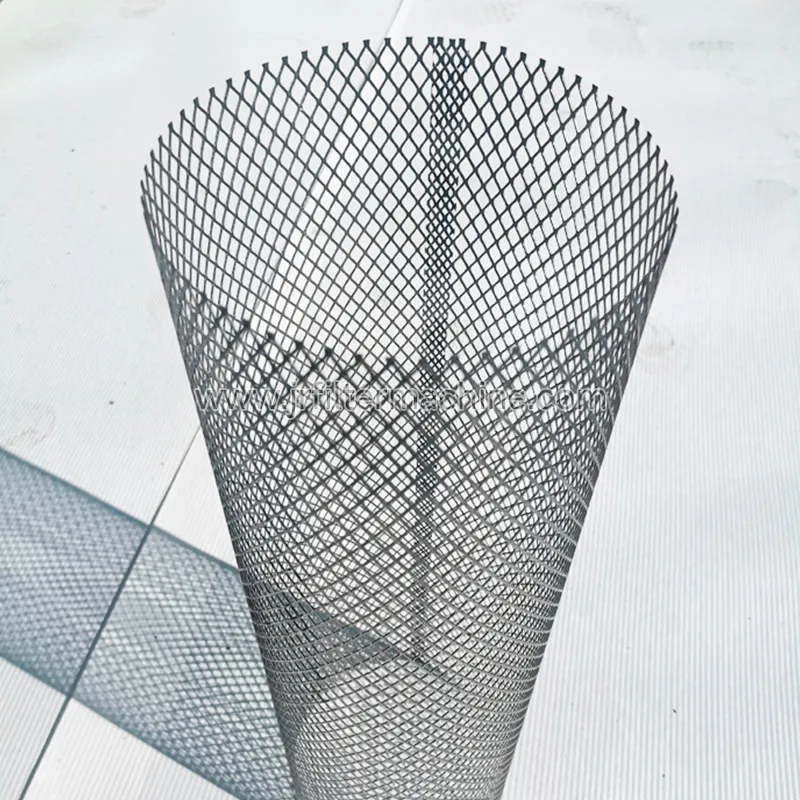

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
