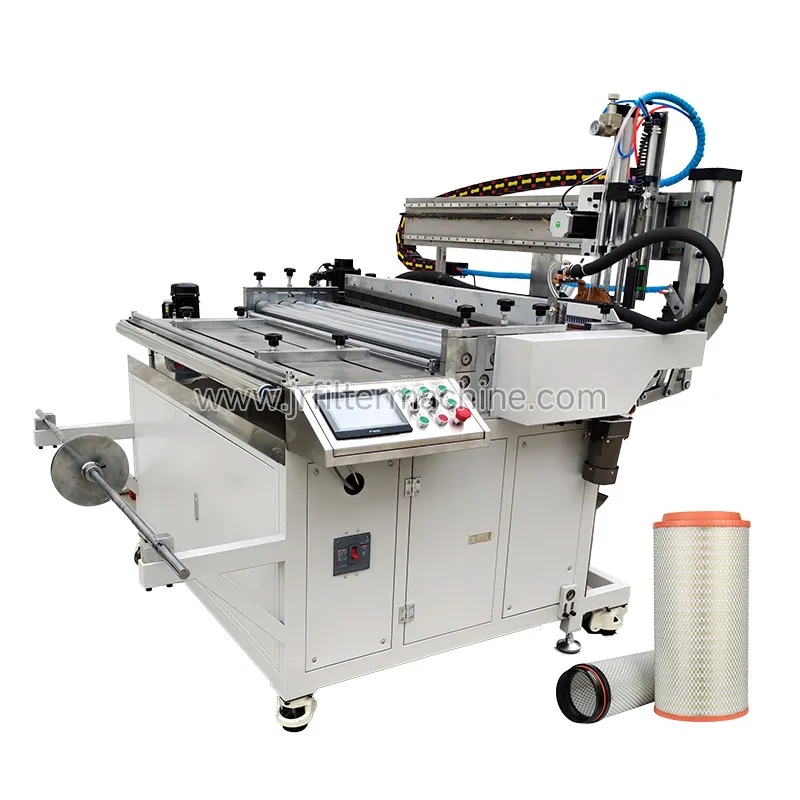

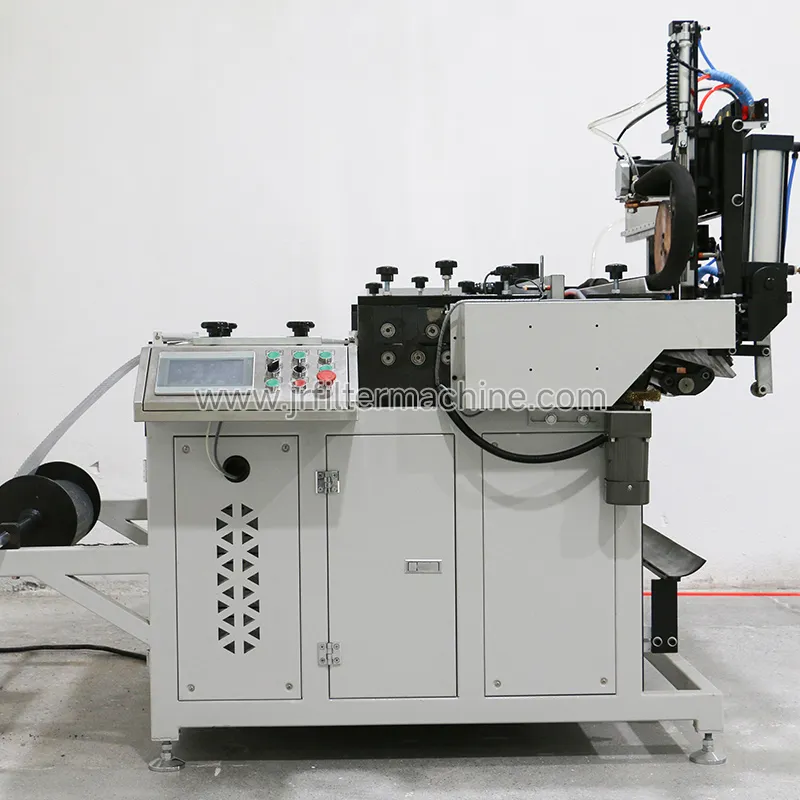

Automatic Mesh Cutting,Rolling And Welding Machine

Model：HWJ-6-660

Production speed: 2-4pcs/min

Maximum product height: 660mm

Iron mesh thickness：0.6-1.2mm

Diameter: 110-400mm

(can produce different diameter at the same time)

Air pressure: 0.6Mpa

Total power: 35KW

Power supply: 380V/50HZ

Dimensions: 1800mm*1750mm*1880mm (1050KGS)

 700mm*650mm*1300mm（220KGS）

Material adaptability: The frame can be made of cold plate spraying, aluminum alloy or stainless steel to meet the needs of different industrial environments.

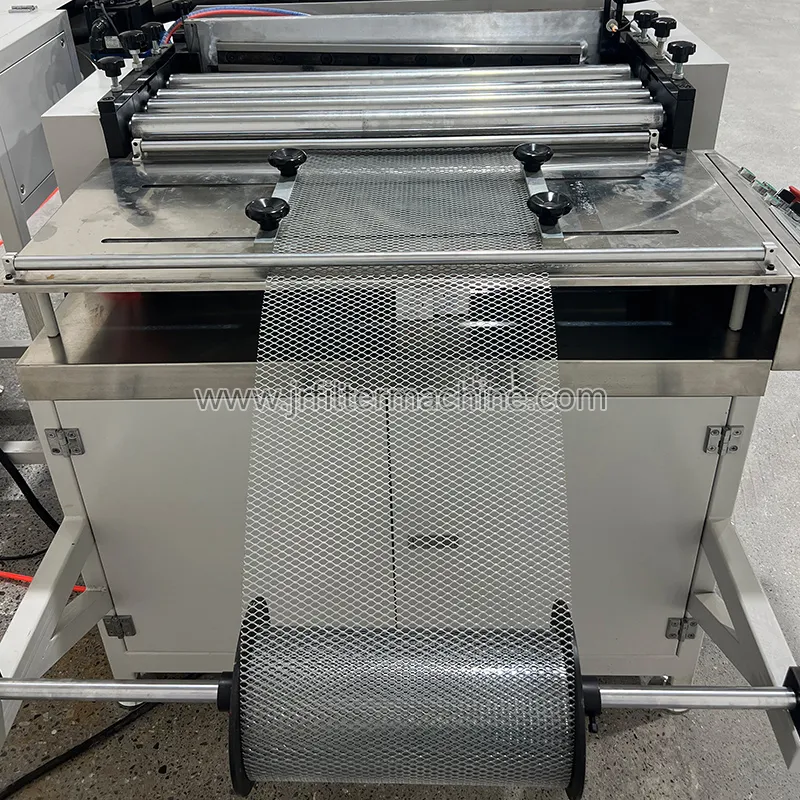

Efficient winding mechanism: The motor drives the reel, combined with the guide components to ensure the stable winding of the screen or filter material. Some designs draw on the offset guide technology of the rotating filter to improve the accuracy of the running track.

High degree of automation

PLC control: PLC and touch screen operation are used to achieve full-automatic feeding, rolling and cutting integration, reducing manual intervention.

Automatic cutting: Some models support automatic cutting without stopping the machine, improving production efficiency.

Strong stability

Smooth operation: motor drive or pneumatic assistance is used to ensure the stability of the mesh rolling process and reduce material deformation.

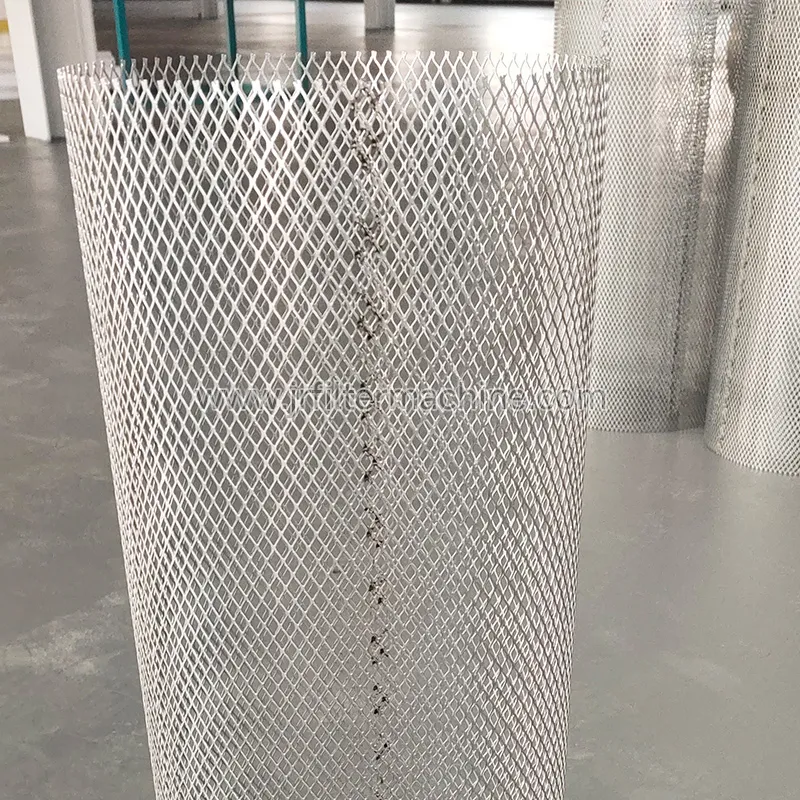

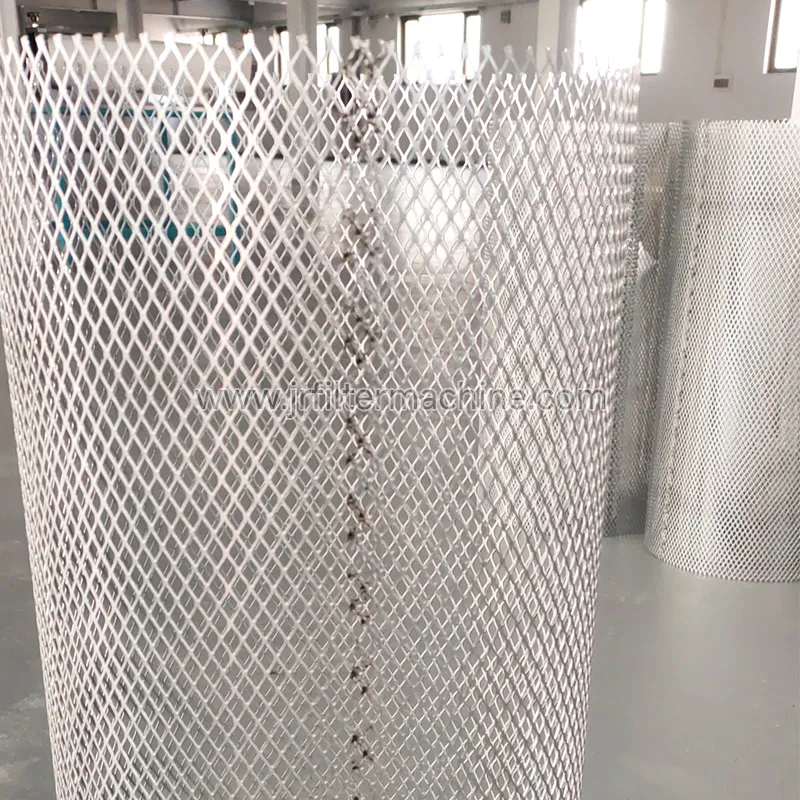

Used in the production of truck air filters, oil and gas separation filters, dust collecting filters.
