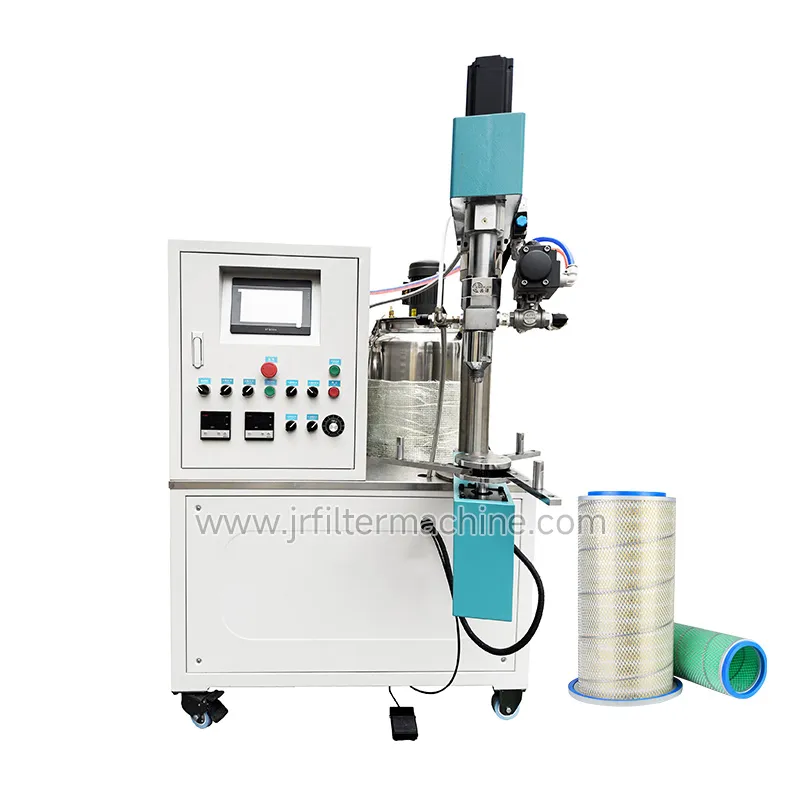

End Cover Glue Injection Machine

Model：DG-5

Glue output: 10-40g

End cover diameter range: 70-420mm

Production efficiency: 8pcs/min-20pcs/min

Total power: 10KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight: 318KG

Dimensions: 1100*1100*1680mm

Two A tanks and one B tank

A can carry 75 kg, B can carry 25 kg

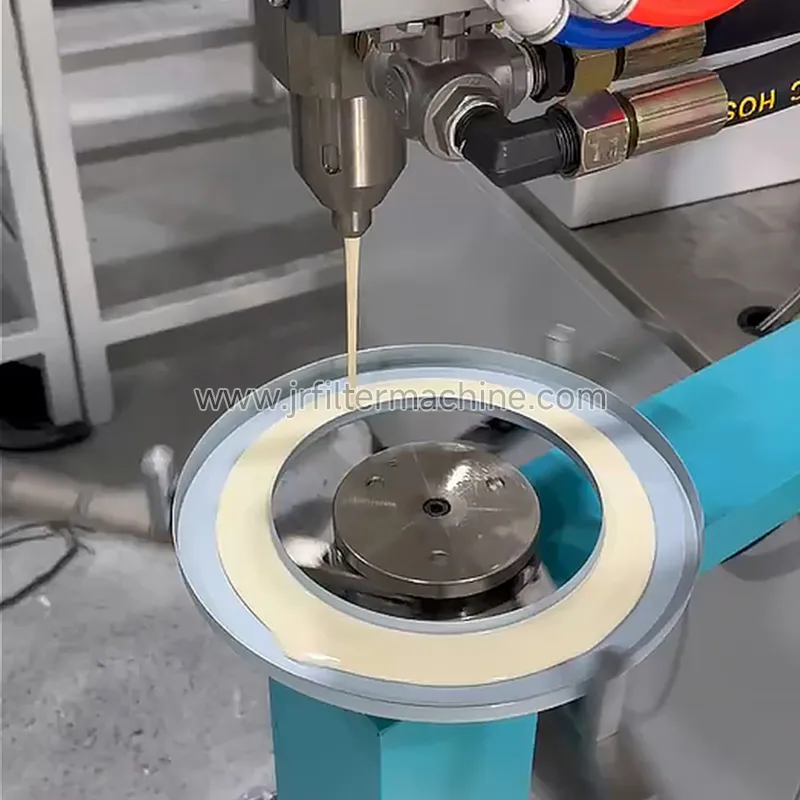

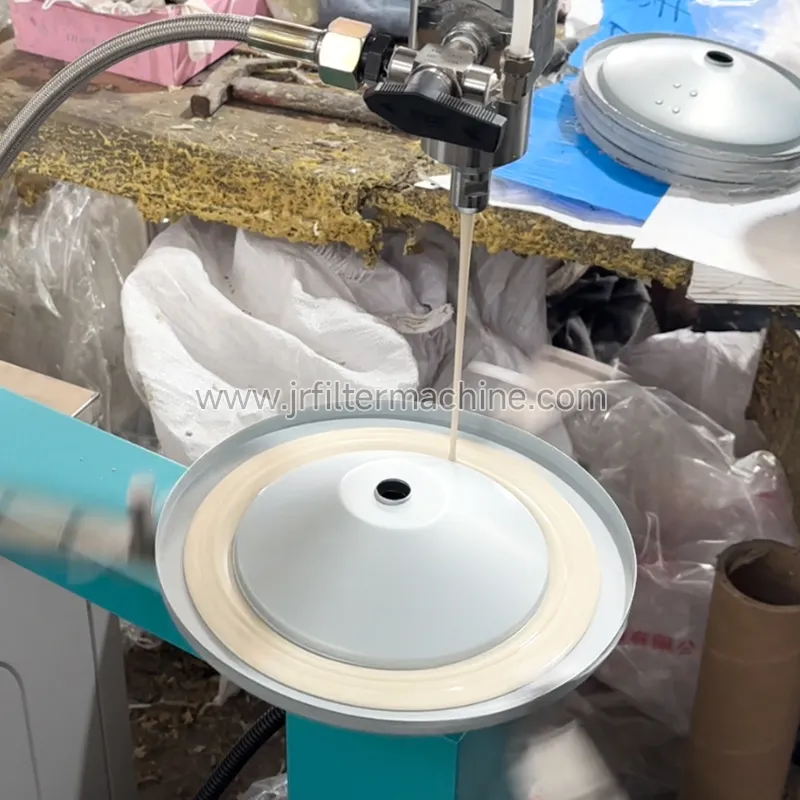

High degree of automation: The end cap glue injection operation is automated, which reduces manual intervention, reduces labor intensity, and improves production efficiency and product quality stability. The operator only needs to place the end cap on the positioning device, and the equipment can automatically complete the glue injection process, greatly improving production efficiency.

Strong flexibility: It can be flexibly adjusted according to different end cap sizes, shapes and injection requirements. By replacing the injection gun head and adjusting the injection parameters, it can adapt to various types of end cap injection operations, with strong versatility and adaptability.

Easy to operate: The operation interface of the equipment is simple and intuitive, and operators can master the operation method after simple training. At the same time, the equipment also has fault diagnosis and alarm functions, which is convenient for operators to find and solve problems in time and reduce equipment downtime.

Easy maintenance: The structure of the glue injection machine is reasonably designed, and each component is easy to disassemble and install, which is convenient for daily maintenance and upkeep. The key components of the equipment are made of high-quality materials and advanced manufacturing technology, with high reliability and service life, which reduces the maintenance cost of the equipment.

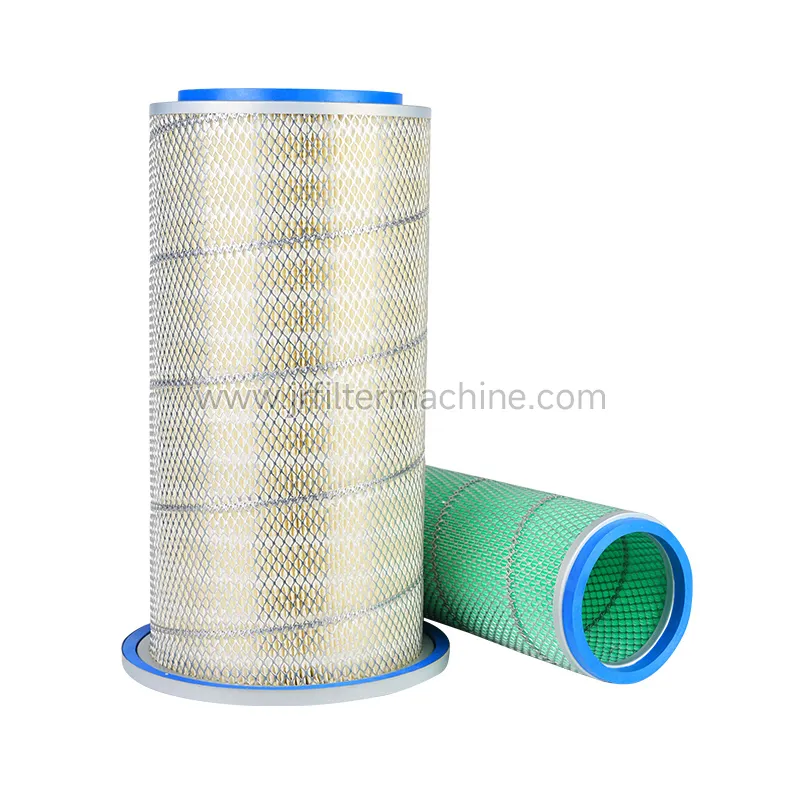

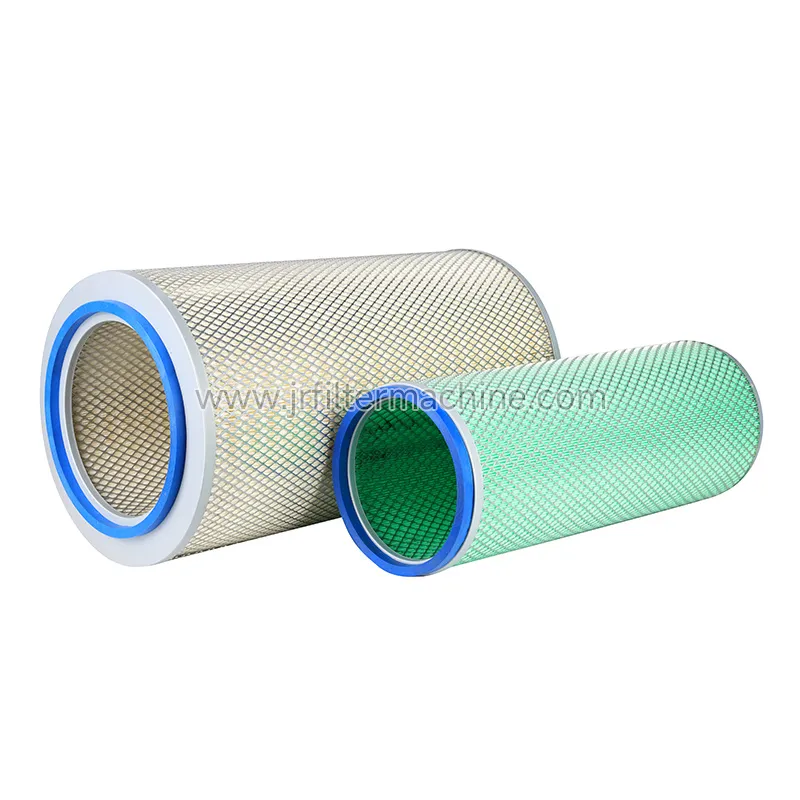

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
