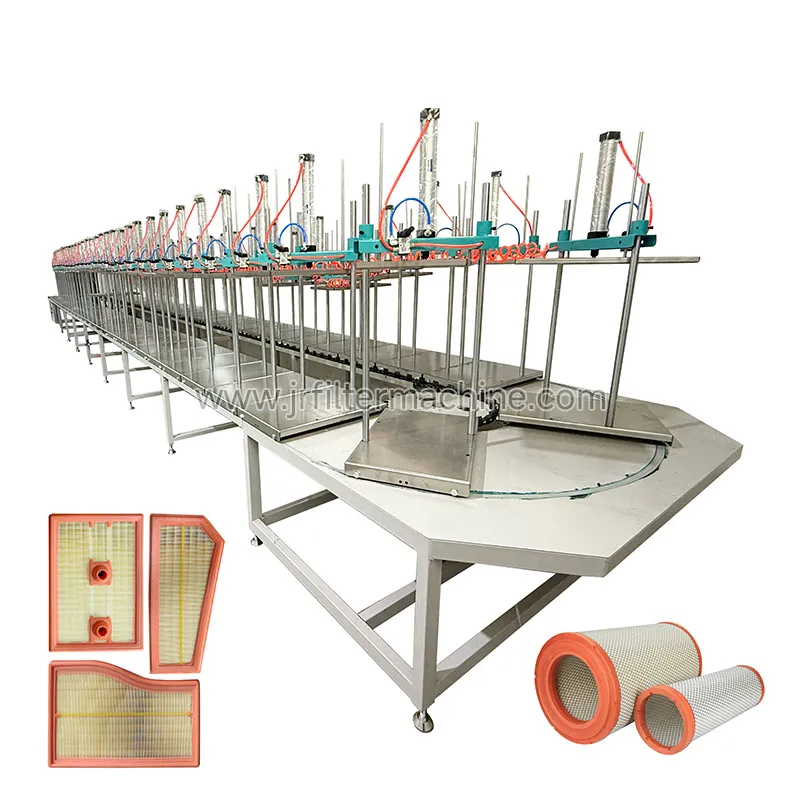

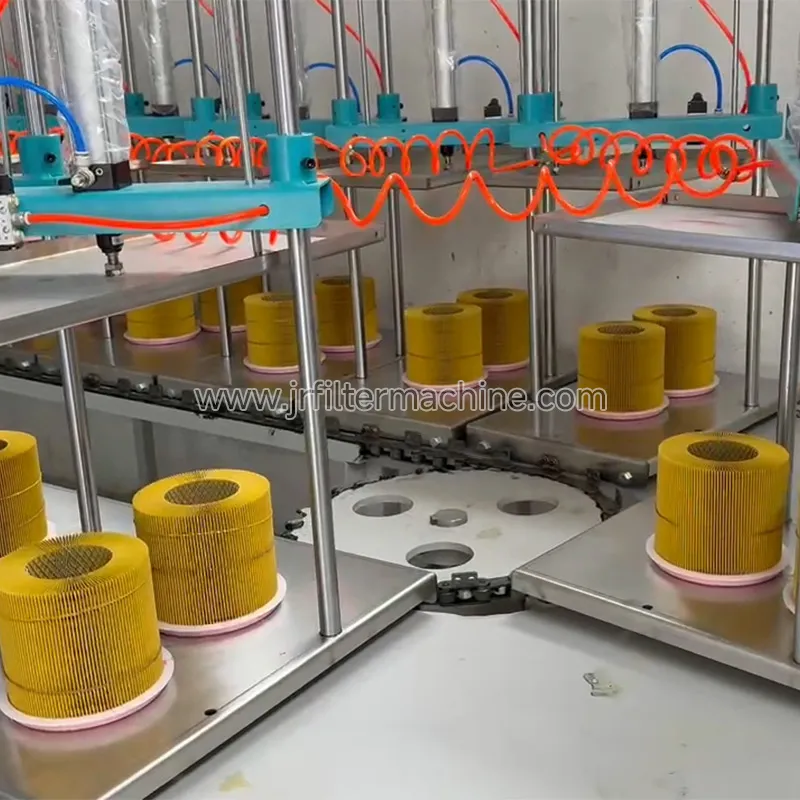

Full-Auto 60 Stations U-Type Curing Oven Line

Model：LSX-5

Rotation speed: 8-15min/rotation

Temperature: 0-100°C adjustable

Heating power: 25KW,Can be controlled

Air pressure: 0.2-0.3Mpa

Number of stations: 60pcs (Can increase or decrease)

Output: 500-2000pcs/shift

Power supply: 380V/50HZ

Power：28KW

Max height: 660mm

Equipment weight: 1000KGS

Dimensions：17800*2500*2000mm

Station size：500*600mm

High efficiency: The compact layout and continuous production method of the full-auto 60 stations u-type curing oven line greatly improves production efficiency and reduces production cycle. Compared with traditional production methods, more products can be produced in the same amount of time.

Quality stability: Through strict quality inspection and automated control, the circular assembly line can ensure the stability and consistency of product quality and reduce the defective rate.

High space utilization: The ring structure concentrates production equipment and operators in a relatively small area, effectively saving production space and reducing plant construction costs.

Flexibility: The circular assembly line can be flexibly adjusted and expanded according to production needs and product characteristics. For example, processing stations can be added or reduced, production rhythm can be adjusted, etc. to adapt to different production tasks.

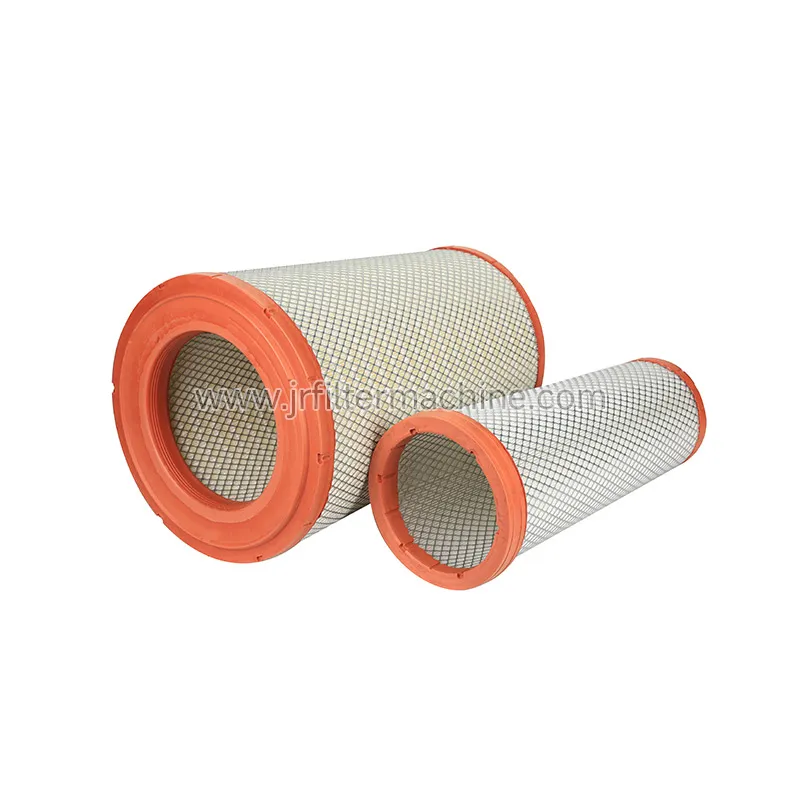

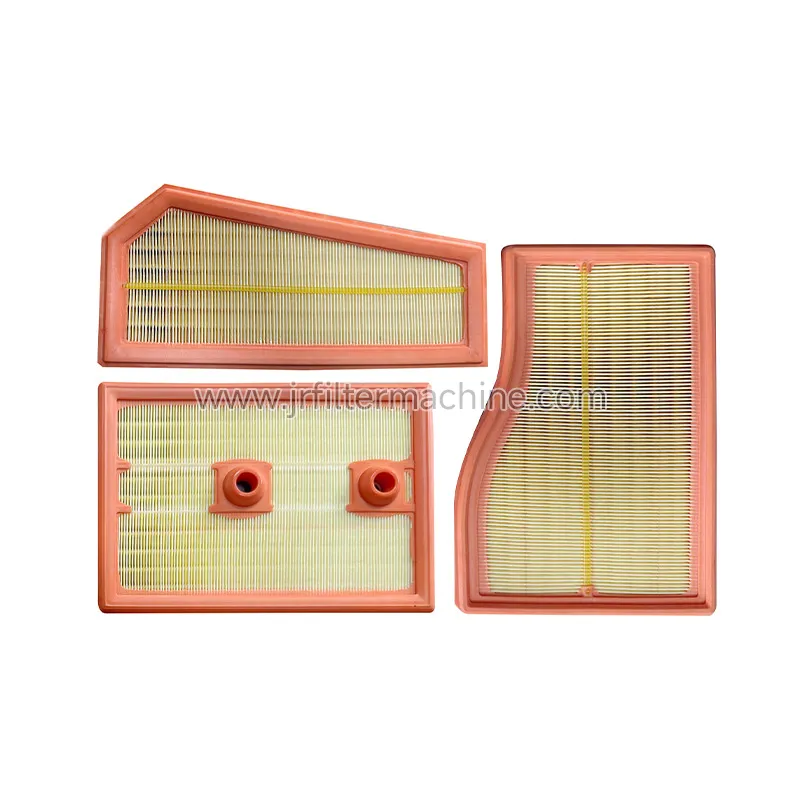

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
