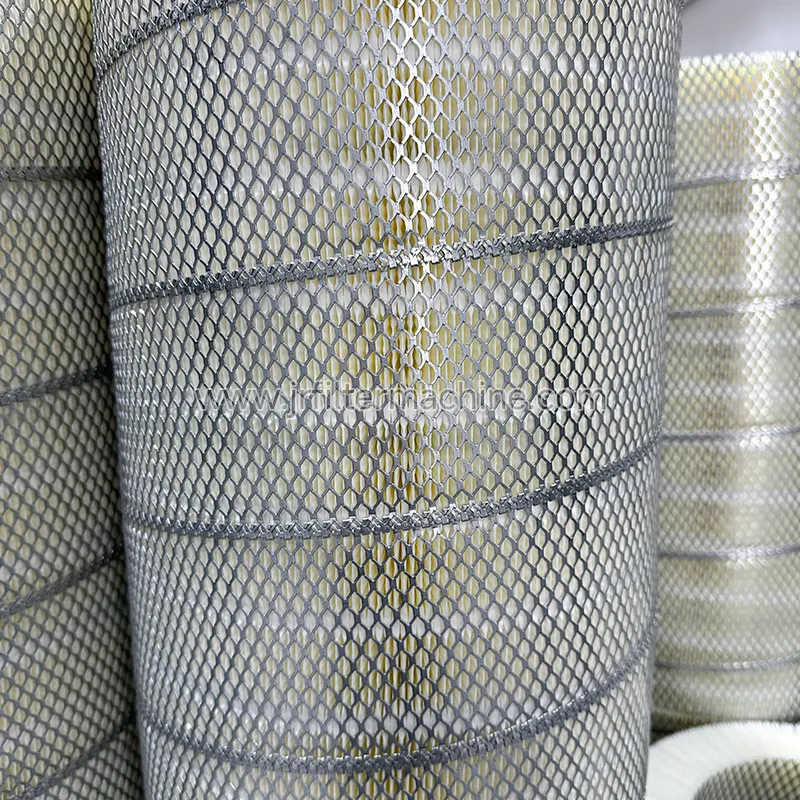

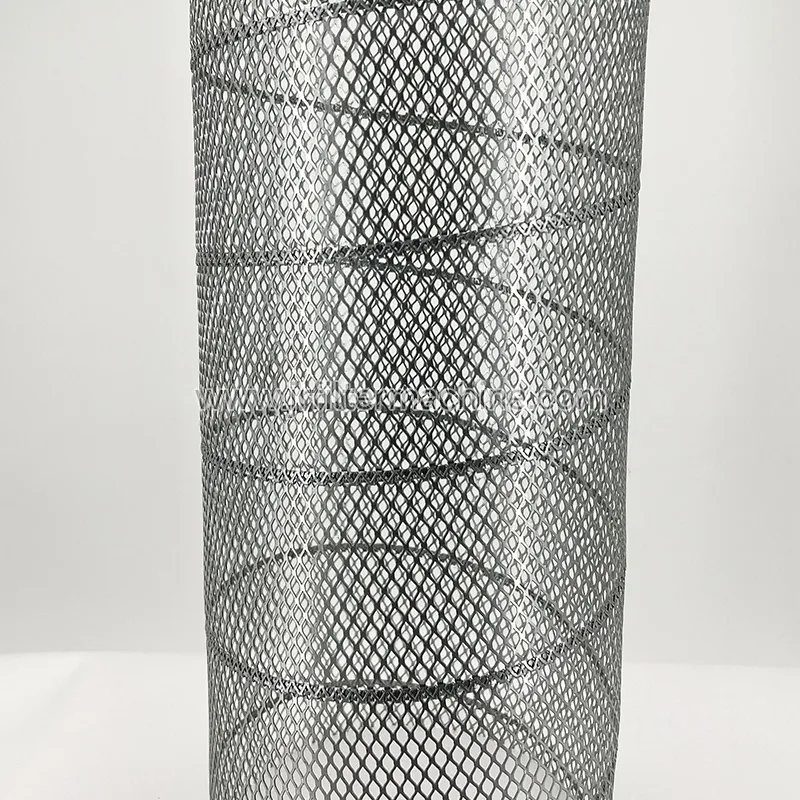

Finished Products
-
Product Parameters

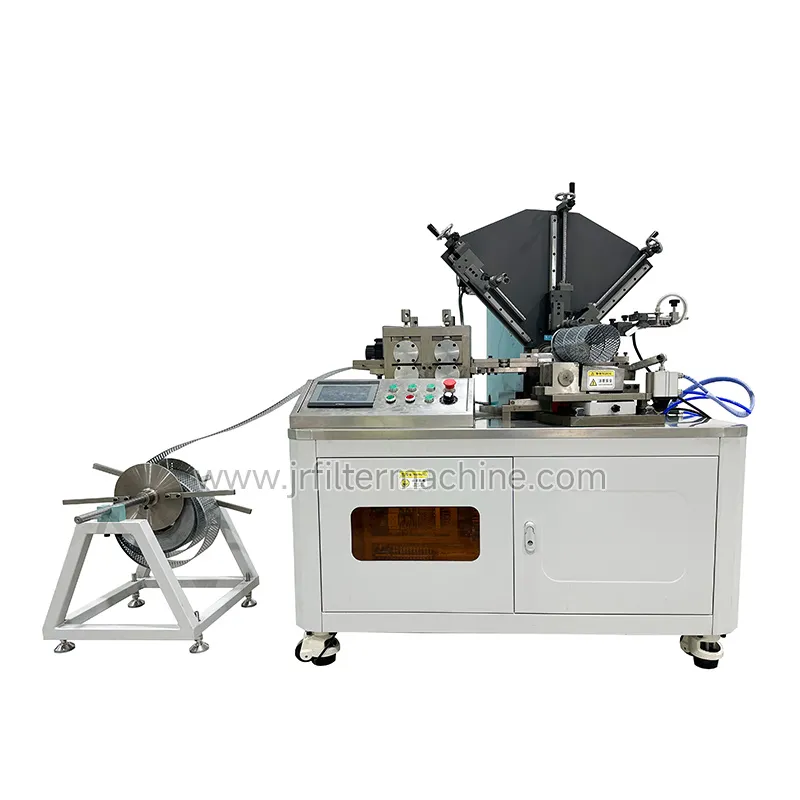

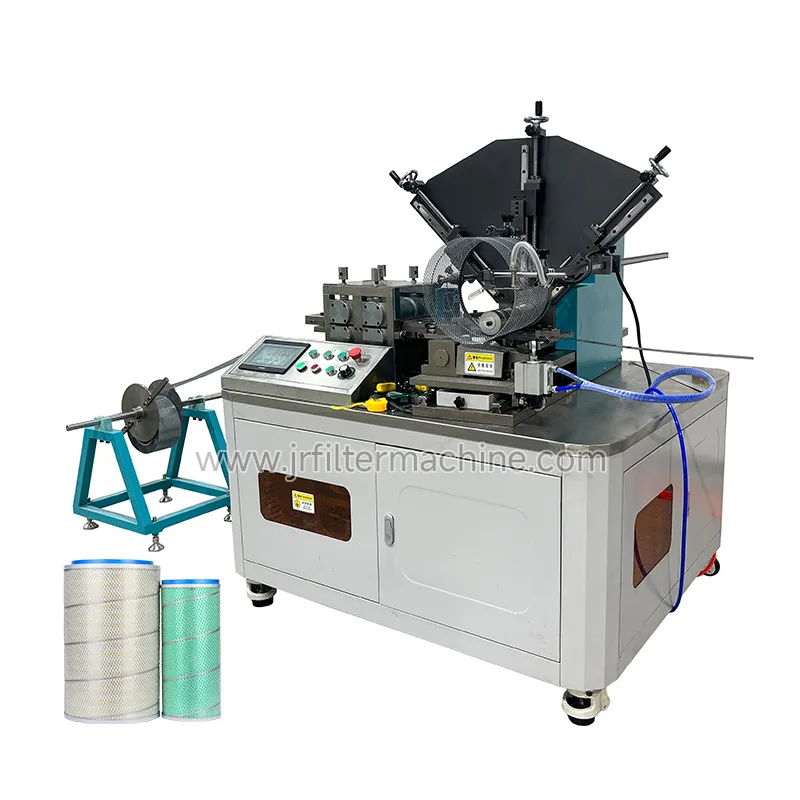

Model：LXW-109-5
Diameter: 80-450mm
Net width: 109mm
Net thickness: 0.5-0.8mm
(The thickness of punching mesh is 0.3-0.5mm)
Min length of roll net: 145mm
Production speed: 54m/min
Total power: 6KW
Air pressure: 0.6MPa
Power supply: 220V/50Hz / 380V/50Hz
Servo motor：4set
Equipment weight: 1007KG
Dimensions: 1500*1290*1840mm
Automatically adjust the angle, cutter
(no need to change the mold)
-
Product Features
Material adaptability: The frame can be made of cold plate spraying, aluminum alloy or stainless steel to meet the needs of different industrial environments.

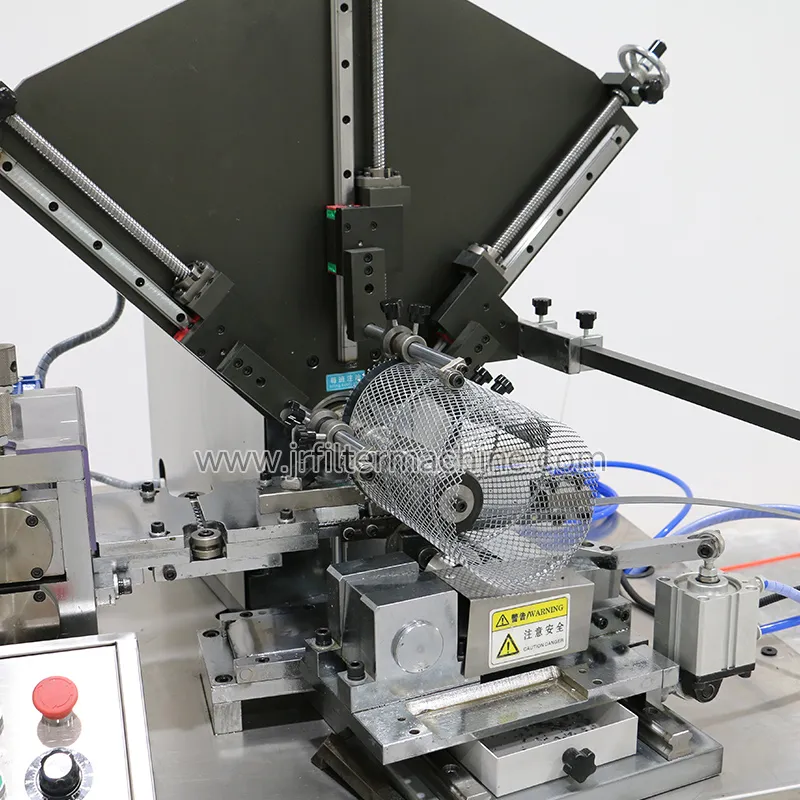

Efficient winding mechanism: The motor drives the reel, combined with the guide components to ensure the stable winding of the screen or filter material. Some designs draw on the offset guid e technology of the rotating filter to improve the accuracy of the running track.
High degree of automation
PLC control: PLC and touch screen operation are used to achieve full-automatic feeding, rolling and cutting integration, reducing manual intervention.
Automatic cutting: Some models support automatic cutting without stopping the machine, improving production efficiency.
-
Application

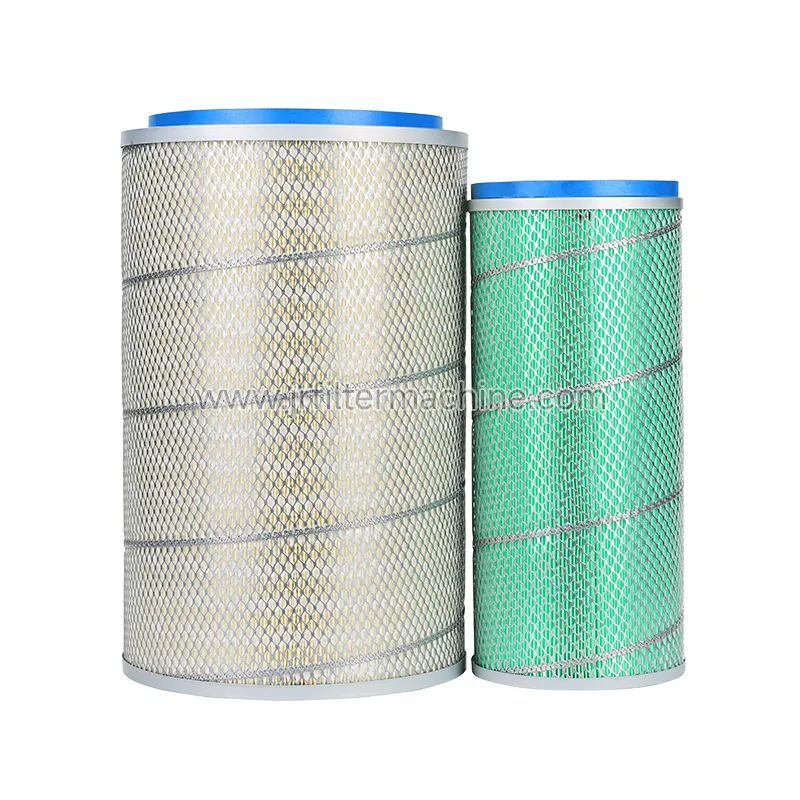

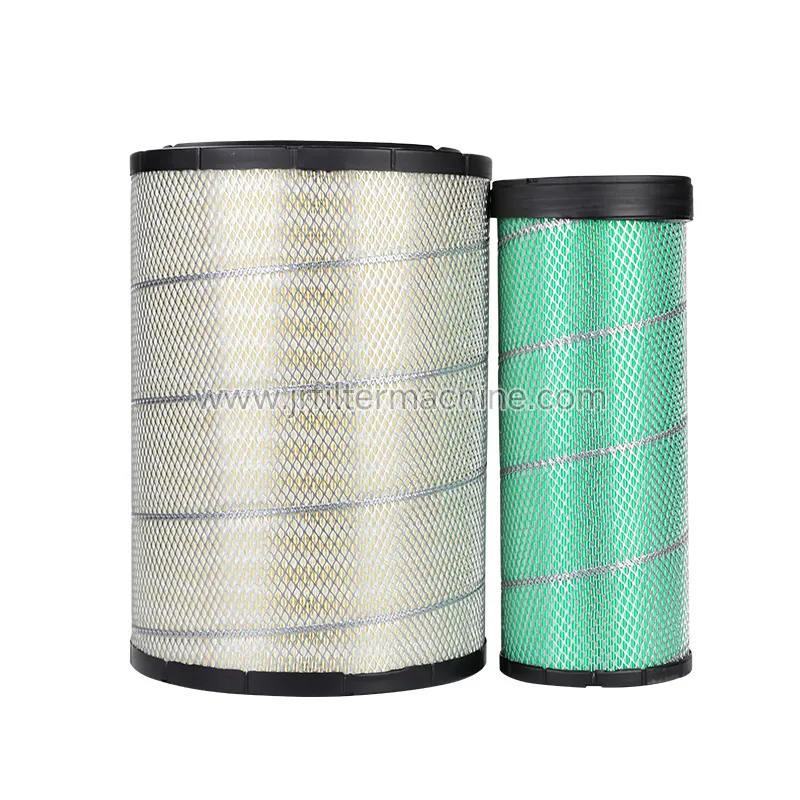

Used in the production of truck air filters, oil and gas separation filters, dust collecting filters.
-
