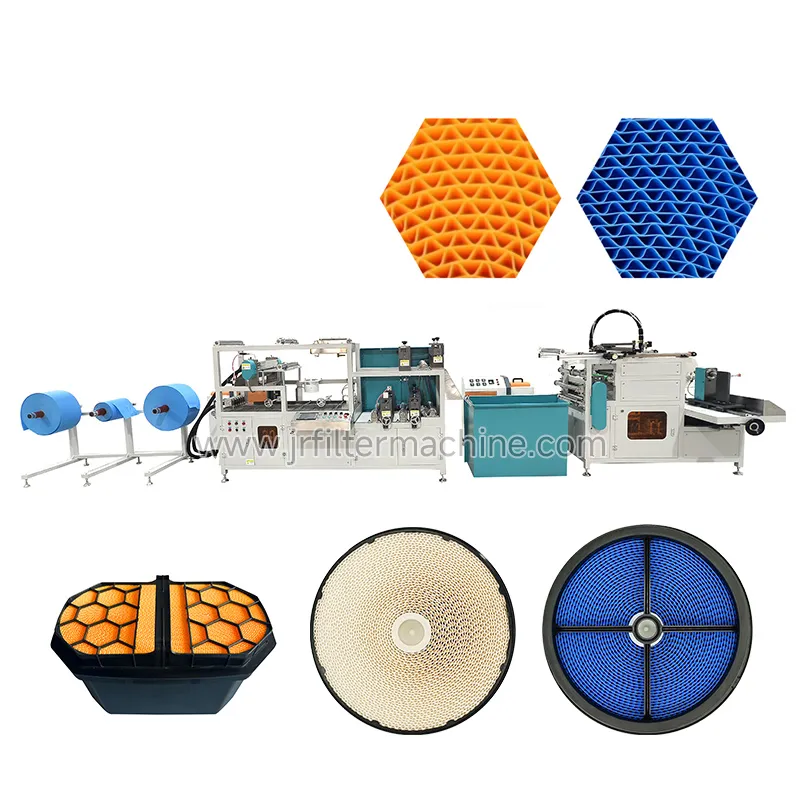

Honeycomb Type Filter Paper Folding Machine Honeycomb Filter Mould Forming Machine(FWLMJ-2)

Model：FWL-6

Production speed: 15m/min

Paper width: 50-380mm

Roller specifications: can be customized

Temperature control: 0-190℃

Total power: 18KW

Air pressure: 0.6Mpa

Power: 380V/50HZ

Dimensions: 2850mm*1050mm*1700mm（820KGS） 2000mm*1150mm*1700mm（590KGS）

 1700mm*700mm*1150mm（1230KGS） 1000mm*950mm*1150mm（320KGS）

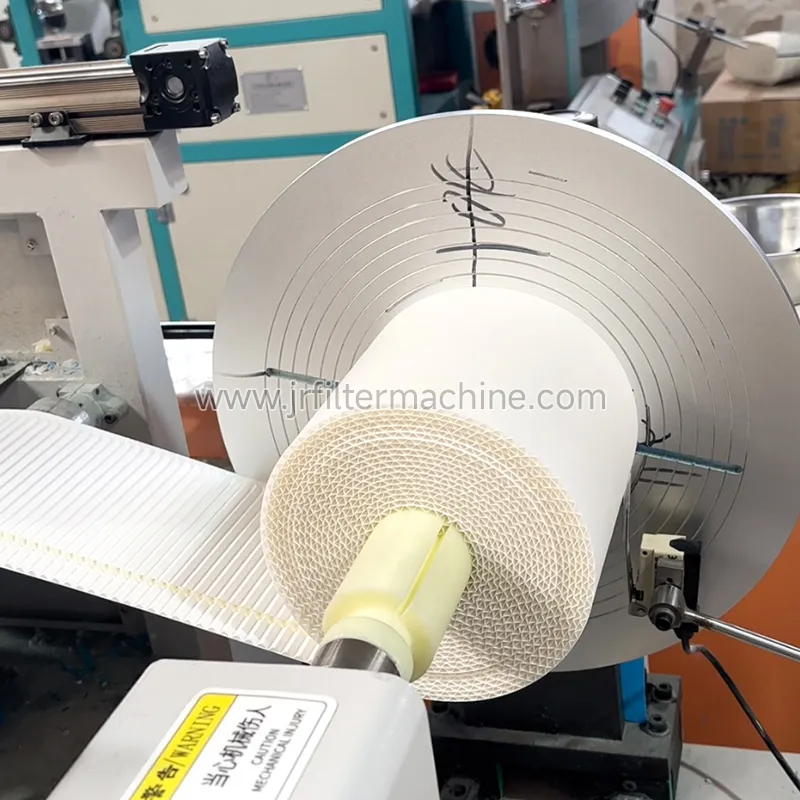

Automatically adjust tension, automatically adjust the direction of the receiving pulley, and adjust the distance and height.

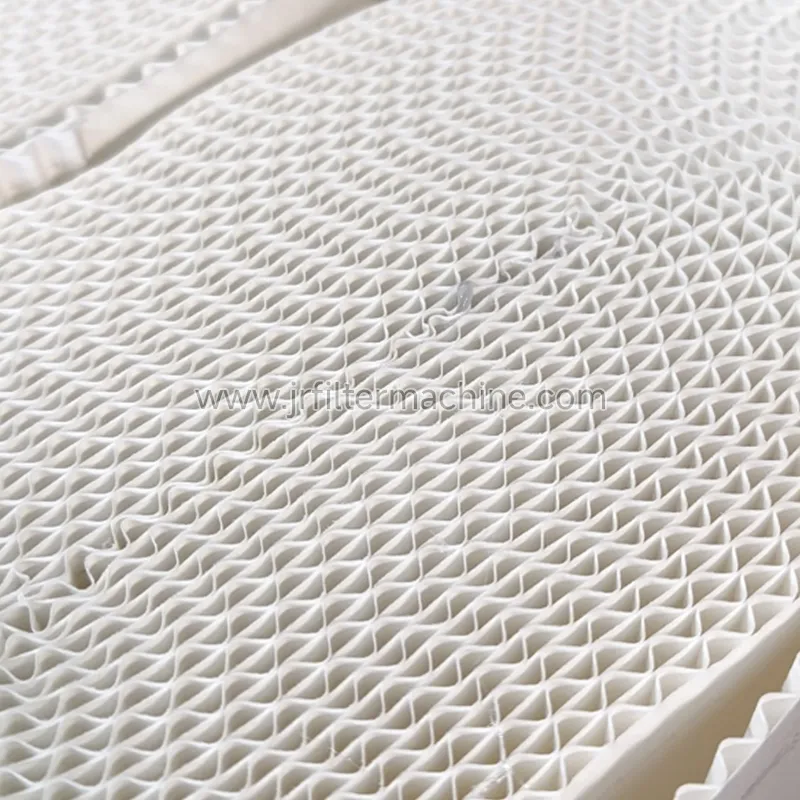

High-precision origami: The honeycomb type filter paper folding machine adopts advanced origami technology and high-precision molds, which can achieve precise crease control. The crease spacing error can be controlled within a very small range, ensuring the consistency and stability of the honeycomb filter material, thereby improving the filtration efficiency and product quality.

High-speed production: The machine is equipped with an efficient transmission system and an advanced control system, which can achieve fast folding and cutting operations, and has a fast production speed to meet the needs of large-scale production. Some advanced honeycomb filter folding machines are able to produce thousands of meters of honeycomb filter materials per hour.

Strong flexibility: The operator can easily adjust the parameters of the folding through the control system, such as fold spacing, fold angle, cutting length, etc., to meet the production needs of honeycomb filter materials of different specifications and uses. In addition, the machine can also adapt to a variety of different filter materials, such as filter paper, fiber felt, non-woven fabrics, etc.

High degree of automation: The honeycomb type filter paper folding machine realizes the automation of the entire production process such as feeding, paper folding, and cutting, which reduces manual intervention, reduces labor intensity, and improves production efficiency and product quality stability. At the same time, the machine also has automatic detection and fault alarm functions, which can timely discover and deal with problems in the production process.

High reliability: Due to the solid structural design and high-quality components, the honeycomb type filter paper folding machine has high reliability and stability. Under normal use and maintenance, the machine can run continuously for a long time, reducing downtime and maintenance costs.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
