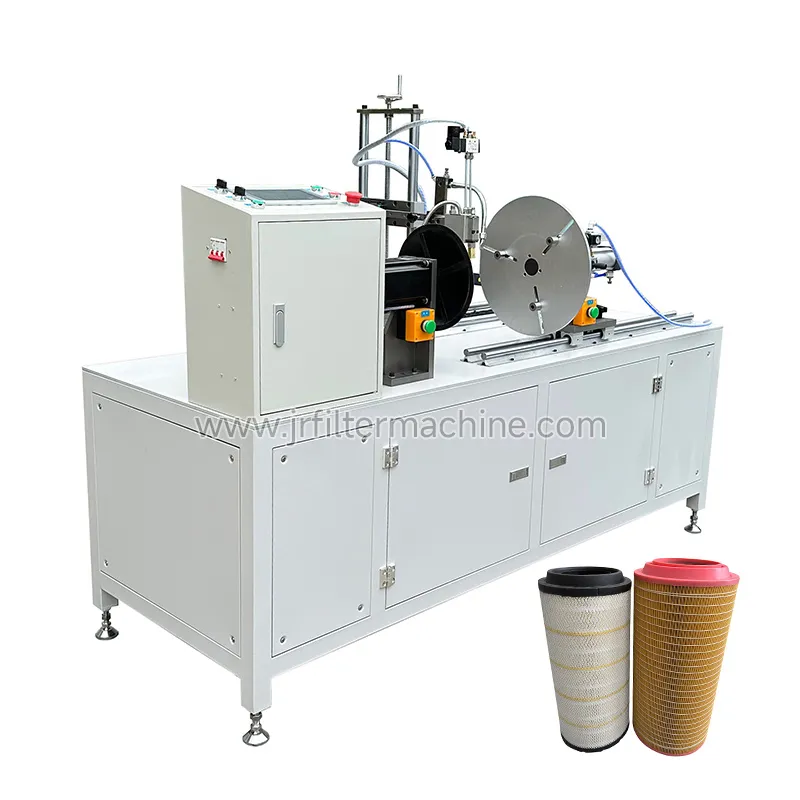

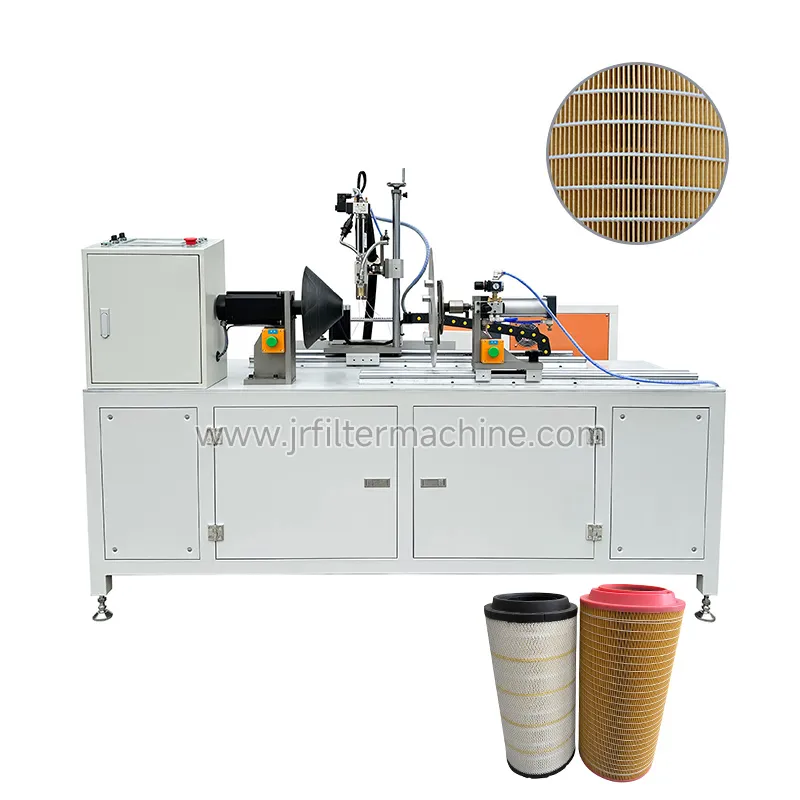

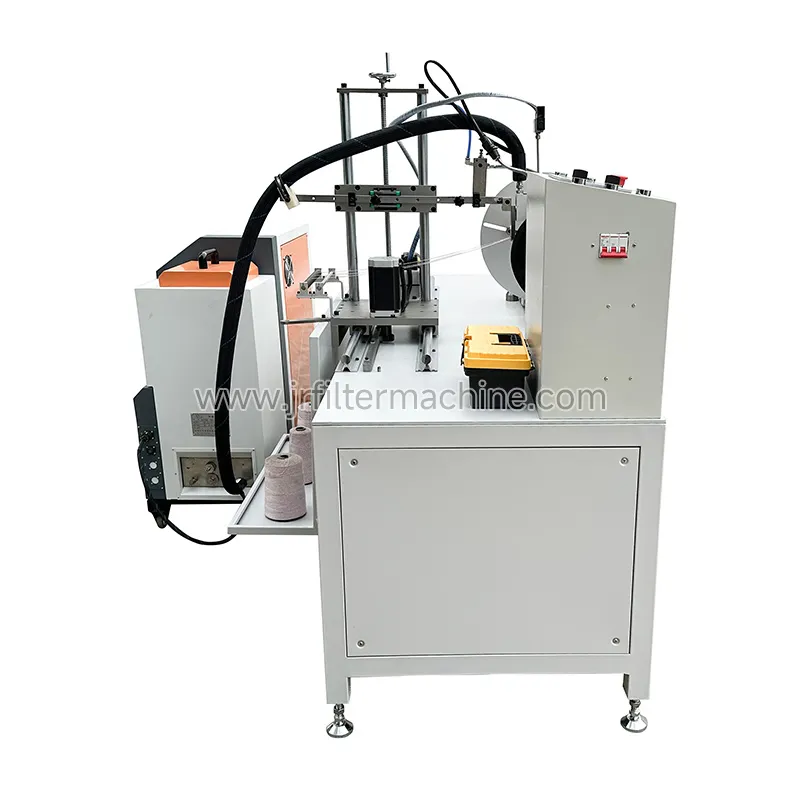

Horizontal Gluing And Winding Machine

Model：RXDJ-5

Filter diameter: 100-450mm

Working width：200-700 / 200-1000mm

Hot melt machine: 30L

Total power: 8KW

Air pressure: 0.6Mpa

Power supply: 380V/50Hz

Dimensions: 2150*1330*1750mm(613KG)

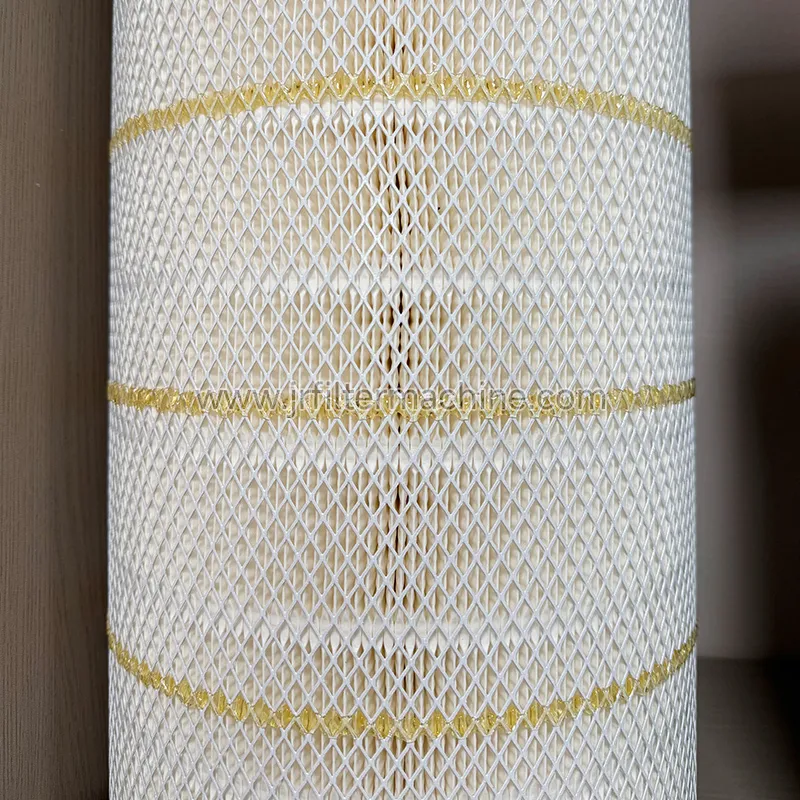

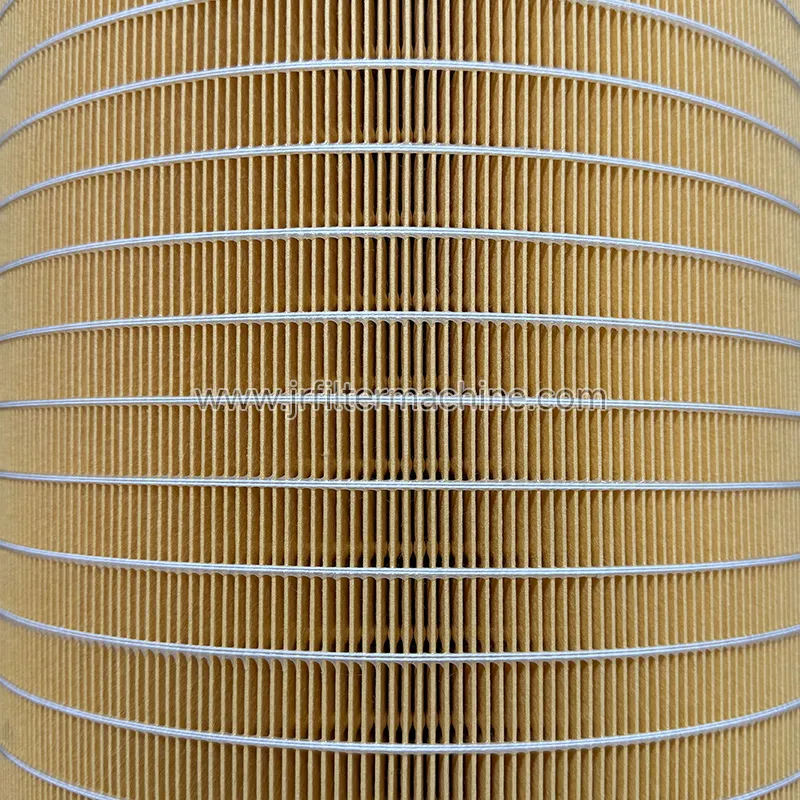

Can set a variety of working modes: spiral glue/ring glue

High precision: The winding accuracy can reach ±0.1mm, the wiring spacing error is controlled within ±0.05mm, and the gluing position accuracy can reach ±0.2mm, which can meet the strict requirements of large air filter production on winding and gluing accuracy.

High speed: The winding speed can reach up to 300 revolutions per minute, and the gluing speed can be adjusted synchronously according to the winding speed to ensure production efficiency. At the same time, the equipment has the function of fast wire and glue changing, which reduces downtime and improves production efficiency.

Good stability: With advanced drive system and control system, the equipment runs stably and reliably with low failure rate. In the long-term continuous production process, the winding and gluing quality can be kept consistent.

Strong flexibility: According to the different specifications and process requirements of large air filter products, the winding speed, wire spacing, glue amount, glue position and other parameters can be flexibly adjusted to meet various production needs.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
