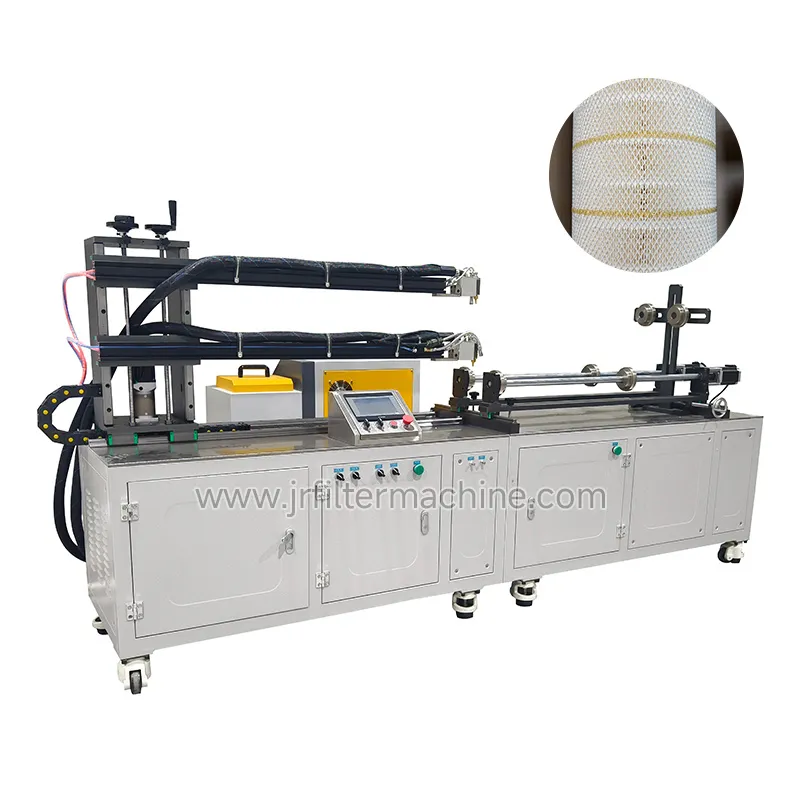

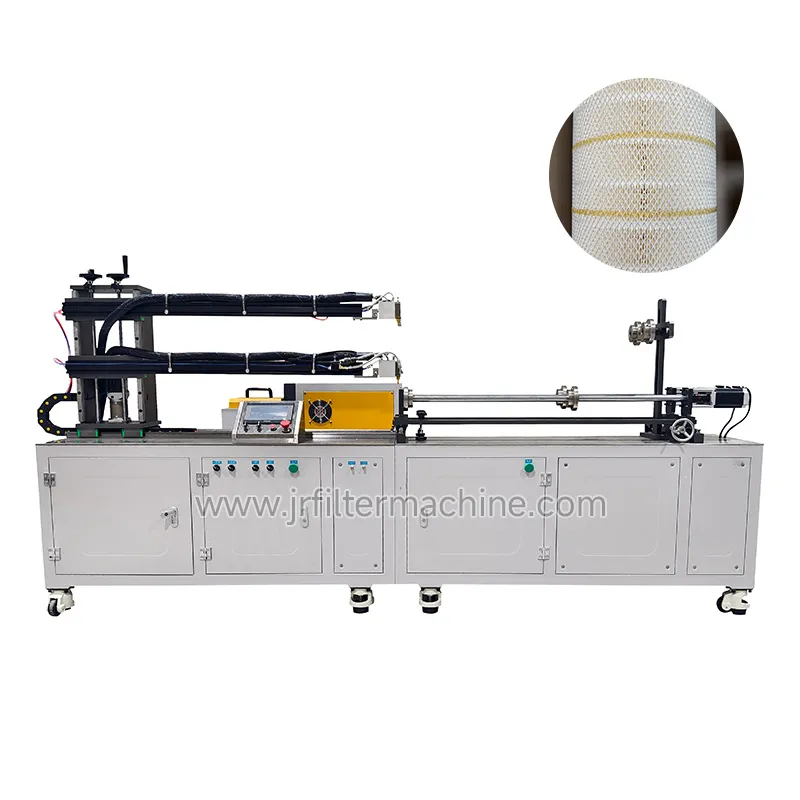

Horizontal Gluing Machine For Inner And Outside Surface

Model：NWWDJ-5

Diameter range: 130mm-450mm

Height range: 300-1000mm

Hot melt machine: 30L

Total power: 10KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Dimensions: 2150*1360*1720mm(723KG)

Can set a variety of working modes: spiral glue/ring glue

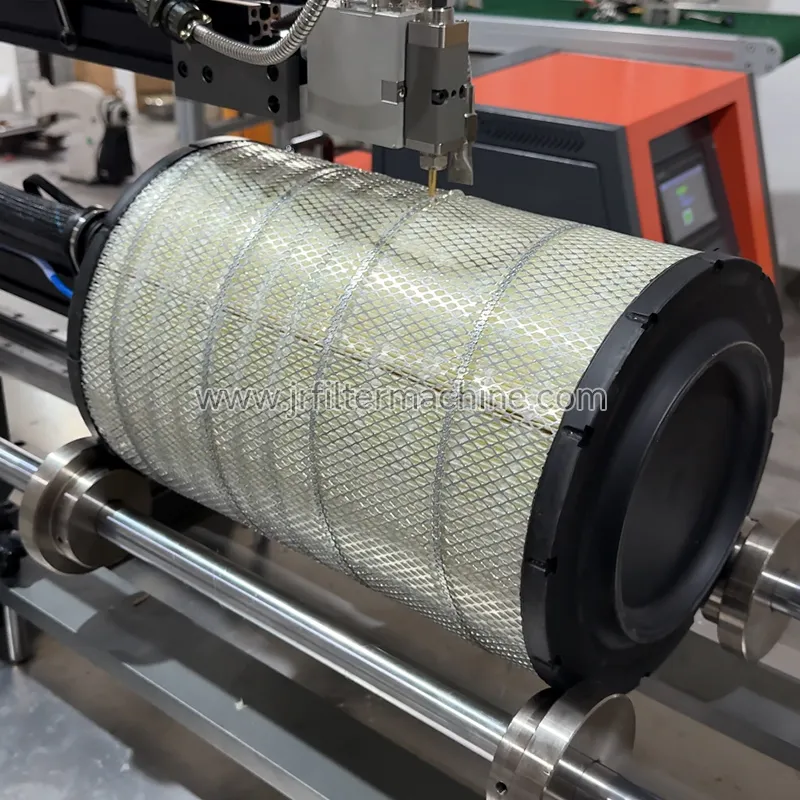

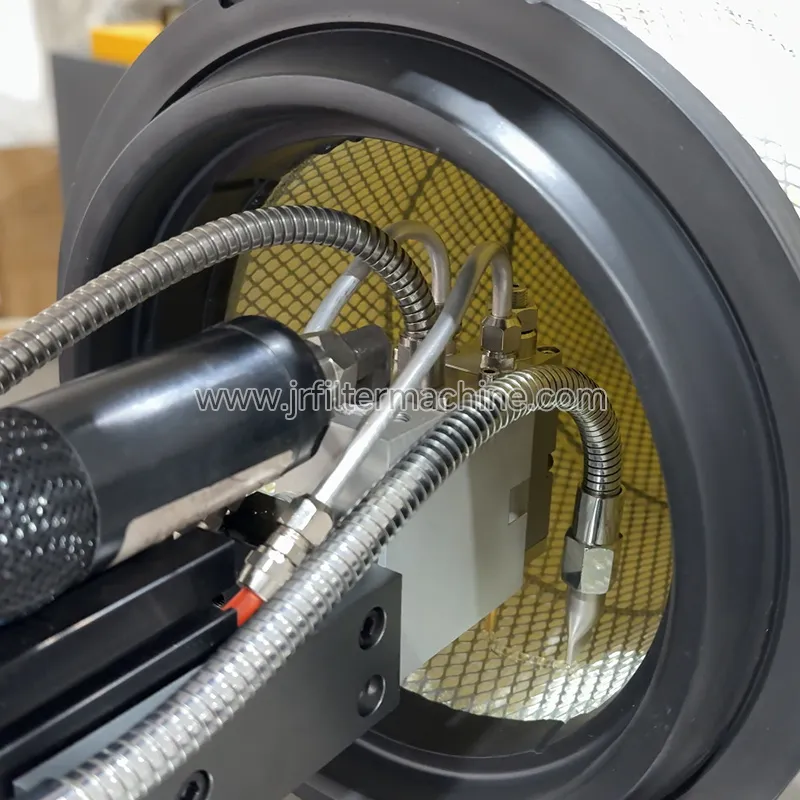

High-precision gluing: The inner and outer net gluing machine on the large air filter line adopts an advanced control system and a high-precision gluing head, which can achieve millimeter-level gluing accuracy, ensuring that the glue is evenly applied to the designated positions of the inner and outer nets, thereby ensuring the sealing performance and filtering effect of the air filter.

High-speed production: The conveying system and glue head of the glue machine adopt high-performance drive motors and advanced motion control technology, which can achieve fast conveying and glueing actions, greatly improving production efficiency. Generally, dozens to hundreds of air filter inner and outer net glueing operations can be completed per hour.

Strong stability: The body of the equipment adopts a solid metal frame structure, and the glue head and conveying system have been carefully designed and debugged, with good stability and reliability. In the long-term continuous production process, it can maintain the consistency of glue quality, reduce the occurrence of equipment failures, and reduce maintenance costs.

High flexibility: The control system of the glue spraying machine has powerful programming functions. Operators can easily adjust the glue spraying parameters and glue spraying paths according to different production requirements and product specifications, realizing multiple uses of one machine and improving the versatility and adaptability of the equipment.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
