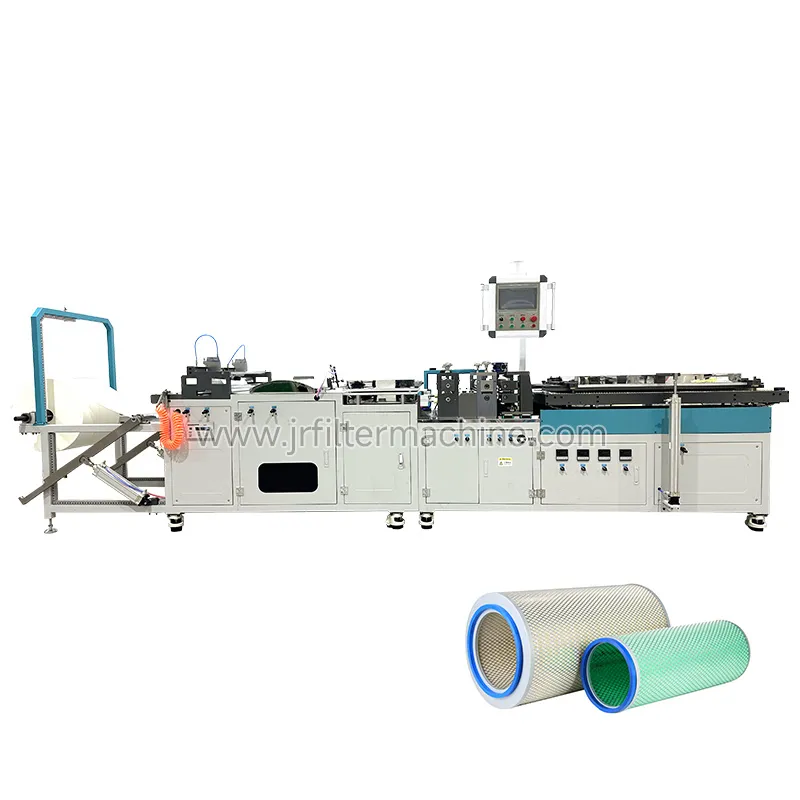

Rotary Type Air Filter Paper Folding Machine

Model：ZZ-700-6

Working speed: 120m/min

Paper width: 100-700mm

Roller specifications: can be customized

Folding height: 22mm-72mm

Temperature control: 0-190℃

Total power: 18KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight：2197KG

Servo motor：8set

Dimensions: 1700*1330*2020mm 1700*1330*1790mm

 2300*1310*1390mm

Automatically adjust tension, automatically adjust the direction of the receiving pulley, and adjust the distance and height.

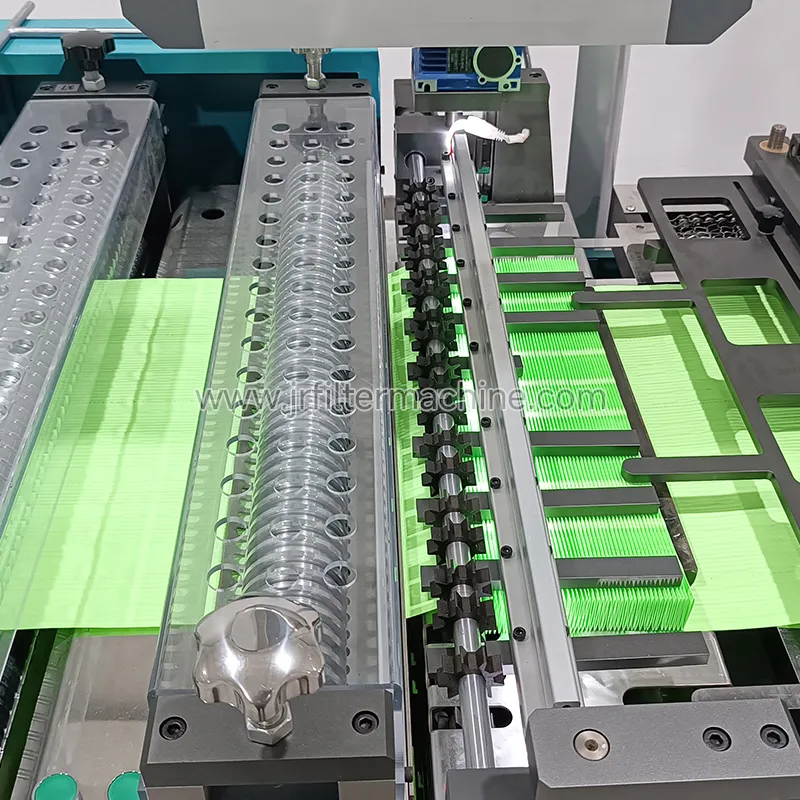

High-precision folding: The folding machine adopts advanced roller design and control system, which can achieve high-precision folding operation. The depth and width error of the crease are controlled within a very small range, ensuring the filtering effect and product quality of the air filter.

Efficient production: With high production efficiency, multiple folding operations can be completed per minute. The feeding, folding and discharging processes are carried out continuously, which greatly shortens the production cycle and improves production efficiency.

Strong adaptability: It can adapt to filter materials of different materials, thicknesses and widths, and has strong versatility. By adjusting the parameters such as the pressure, rotation speed and crease spacing of the drum, it can meet the production needs of air filters of different specifications.

Easy operation: The equipment is equipped with a user-friendly operation interface. The operator can start, stop, set parameters and other operations of the equipment simply by pressing buttons and display screen on the control box. At the same time, the equipment also has automatic alarm and fault diagnosis functions, which is convenient for operators to find and solve problems in time.

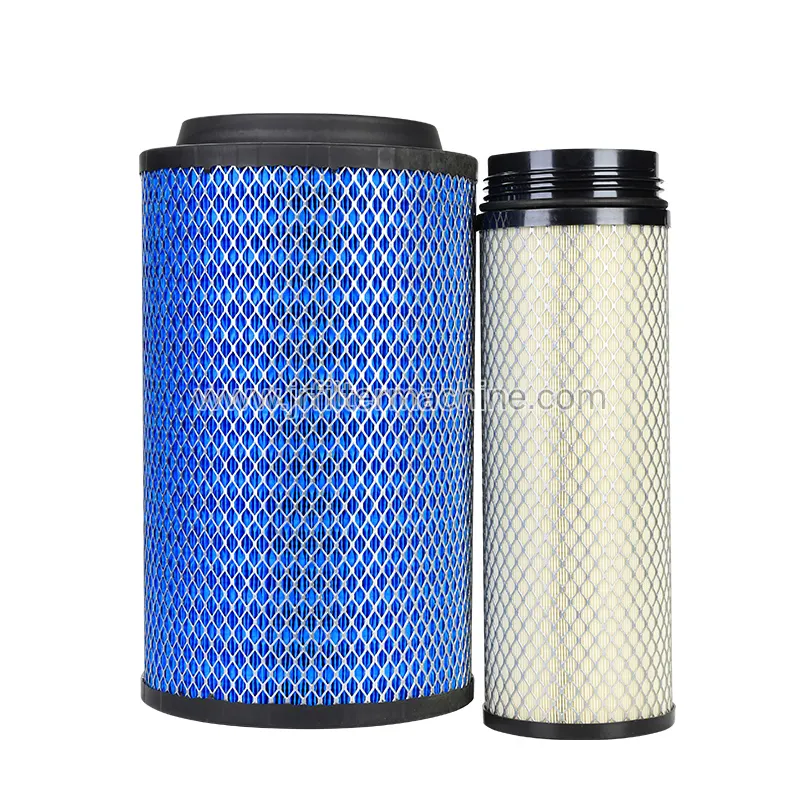

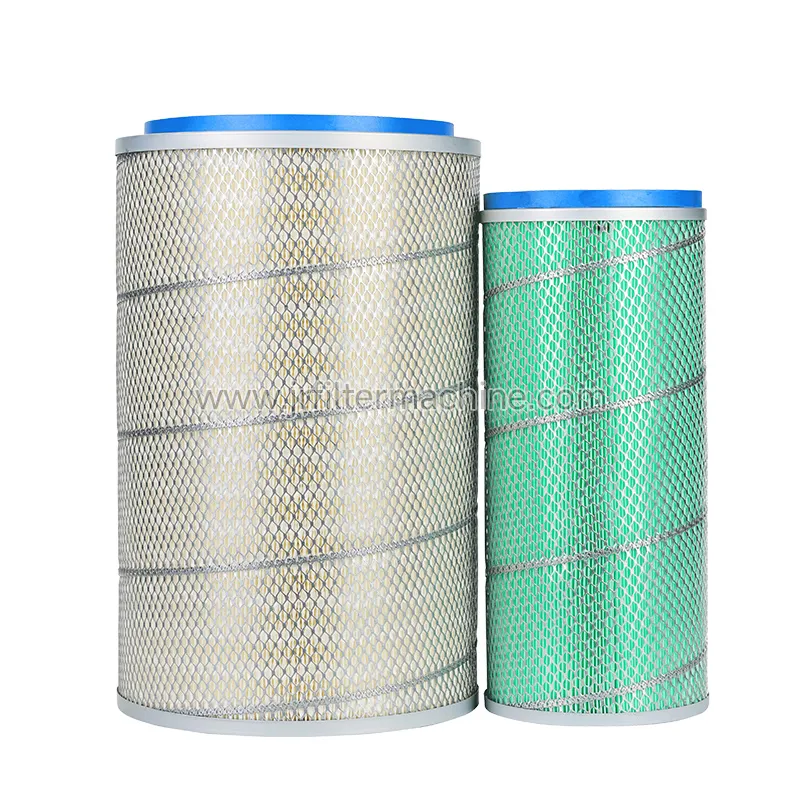

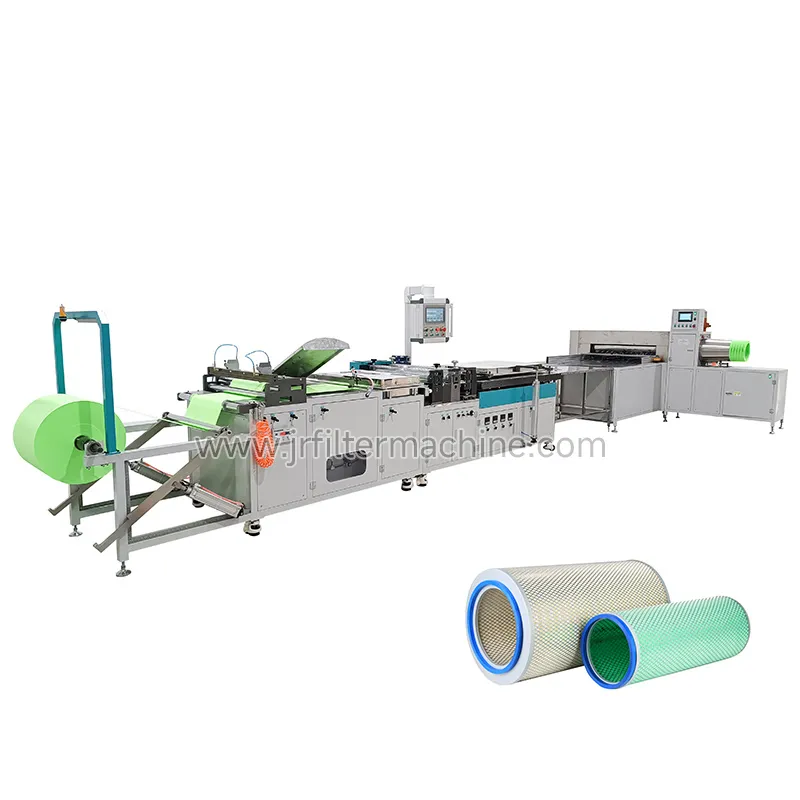

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
