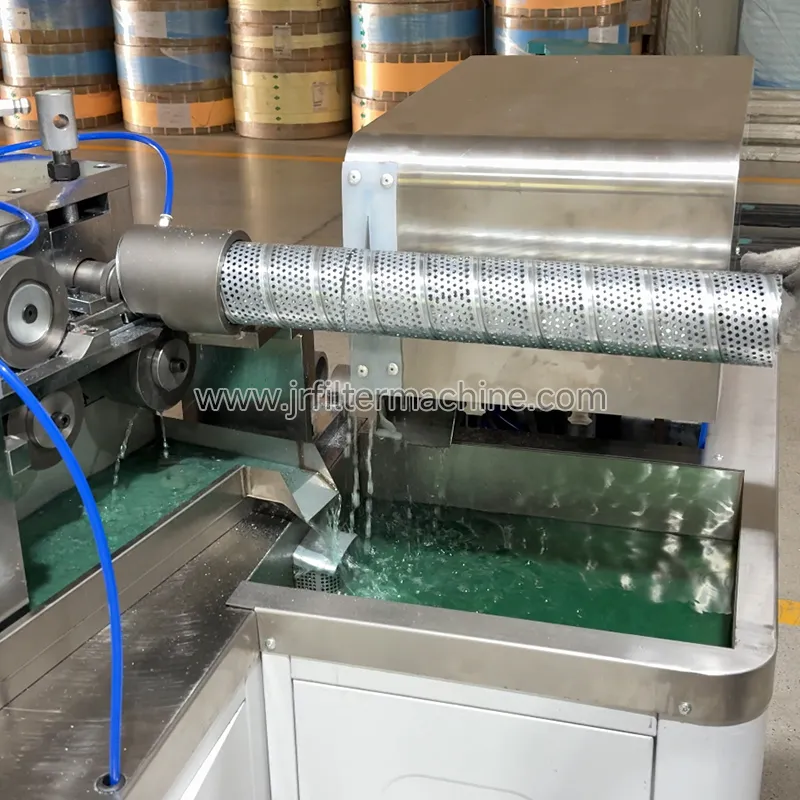

Hydraulic Oil Filter Core Making Machine (68 Steel Belt)

Model：YFJG-5

Diameter: 58mm-400mm，can be customized

Steel mesh width 45mm, thickness 0.6-1.2mm, machinable diameter 58-350mm

Steel mesh width 68mm, thickness 0.6-1.2mm, machinable diameter 70-350mm

Steel mesh width 120mm, thickness 0.6-1.5mm, machinable diameter 150-450mm

Applicable materials: Fingerprint resistant plate, galvanized plate

Production efficiency: 5-10m/min

Total power: 15KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight: 1868KG

Dimensions: 1770*1530*1630mm 1650*970*1420mm 2100*630*1100mm

The cutting mode is electric saw cutting

1.The high molding precision can effectively guarantee the roundness and straightness of the oil separator cylinder, and ensure the assembly quality and filtering performance of subsequent filter elements.

2.Stable forming quality: The hydraulic system provides stable and uniform pressure, avoiding the impact and vibration that may be caused by mechanical transmission. The material deformation during the rolling process is uniform, and the workpiece has no obvious wrinkles, cracks or other defects. It ensures the structural strength and sealing performance of the oil hydraulic components and improves product reliability.

3.Low maintenance cost: Using high-quality hydraulic components and precision mechanical structure, the equipment operates stably and reliably with a low failure rate. Key components are designed for easy disassembly and replacement, making daily maintenance simple and convenient, reducing equipment downtime and ensuring continuous and stable operation of the production line.

4.Wide range of applications: By replacing molds of different specifications and adjusting parameters, it can adapt to the rolling processing of oil separation hydraulic filter element frames or related pipe fittings of various materials (such as stainless steel, carbon steel, etc.), different thicknesses and diameters. It has strong flexible production capabilities and can quickly respond to diverse product demands.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
