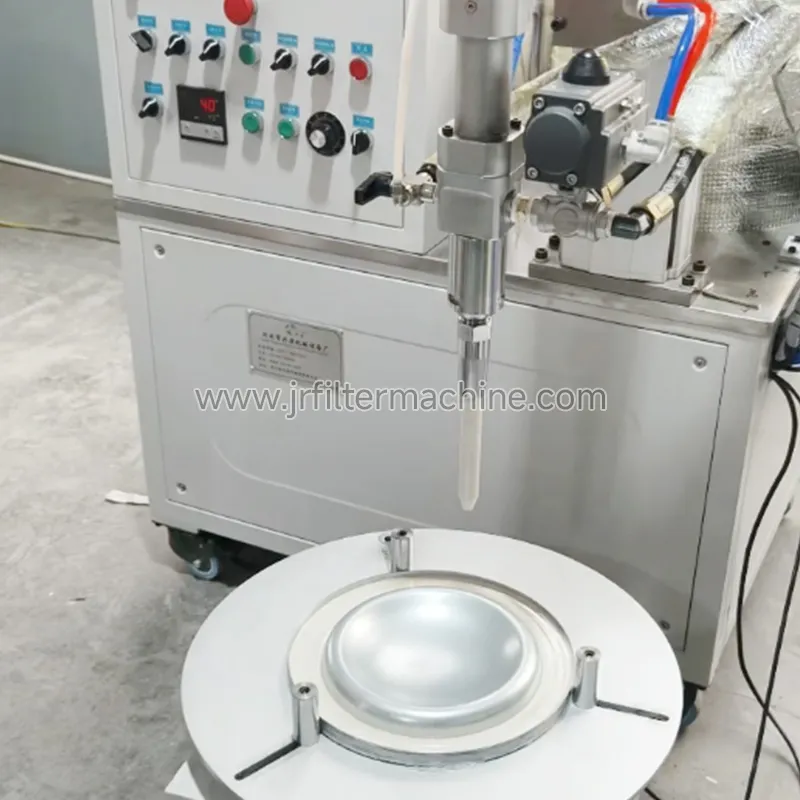

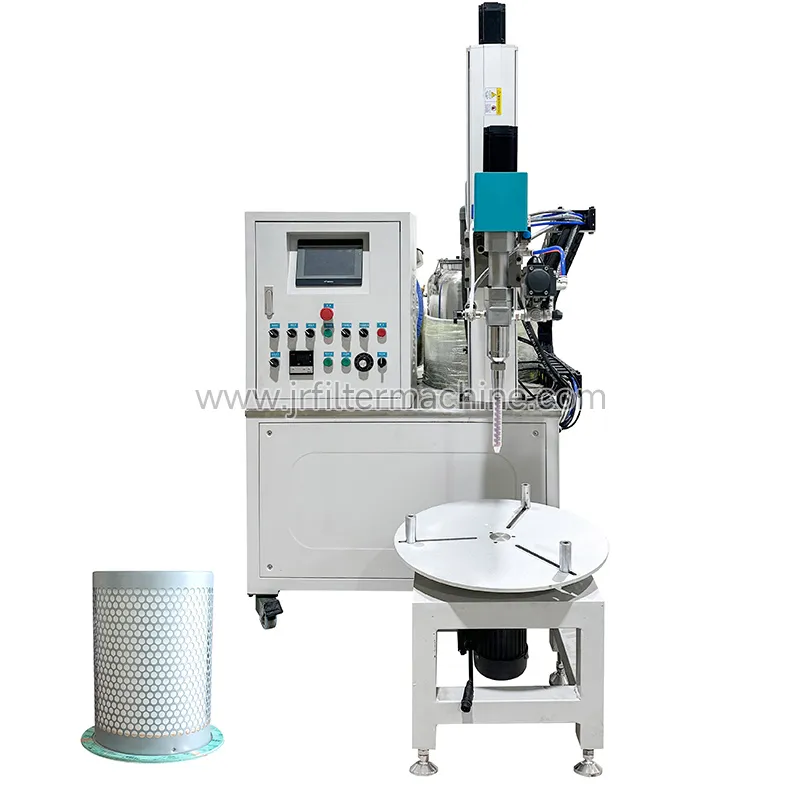

Oil And Gas Separation Filter Element Gluing Machine

Model：YFZJ-5

Glue output: 5-20g

End cover diameter range: 50-200mm

Production efficiency: 20pcs/min-50pcs/min

Total power: 5KW

Air pressure: 0.6Mpa

Power supply: 380V/50HZ

Equipment weight: 350KGS

Dimensions: 1100mm*1100mm*1700mm

1.Guaranteed glue injection accuracy: Through sophisticated mechanical structure and intelligent control system, the glue injection amount, injection position and injection pressure are precisely controlled to ensure that the glue injection amount of each oil separation product is uniform and consistent, and the glue layer thickness and distribution meet the design standards.

2.Optimize the working environment: Adopt a closed glue injection system to reduce the volatilization and leakage of glue during the injection process, reduce pollution to the working environment, improve the working conditions of operators, and meet the environmental protection and occupational health and safety requirements of modern industrial production.

3.Good compatibility and adaptability: Parameters can be adjusted and molds replaced according to different specifications and models of hydraulic oil filters and oil separators, flexibly adapting to diverse production needs without large-scale equipment modifications, thereby improving equipment utilization and production line flexibility.

4.Achieve traceability of the production process: Equipped with data collection and recording functions, it can record key parameters of the injection process (such as injection time, pressure, glue volume, etc.) in real time, facilitating the monitoring, analysis and traceability of production quality, and providing data support for production management and quality improvement.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
